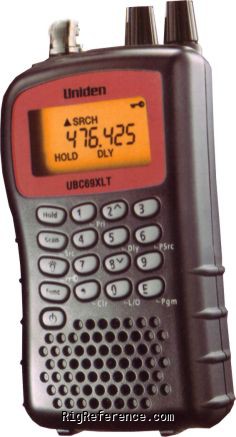

The Uniden-Bearcat UBC69XLT is a handheld HF/VHF/UHF scanner / receiver. It covers 25-87 / 137-174 / 406-512 MHz with tuning steps of 5 / 6.25 / 10 / 12.5 / 20 kHz. The UBC69XLT utilizes a triple conversion superheterodyne receiver system with IF frequencies of 1st: ~380 MHz, 2nd: 21.3 MHz, and 3rd: 450 kHz. It features 5 memory banks with 80 channels total, a backlit display, and an audio output of 400 mW at ?% distortion / 8 ohm. The UBC69XLT is powered by 2×R6/AA Alkaline or NiMH batteries and weighs 165 gr. Dimensions are 115 × 68 × 32 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 20 kHz
- Memories
- 80 channels in 5 bank(s) @ 50 channels/second
Receiver
- RX-range
- 25-87 / 137-174 / 406-512 MHz
- Modulations
- FM
- Sensitivity
- VHF: 0.3 µV (12 dB SINAD)
UHF: 0.4 µV (12 dB SINAD) - Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: ~380 MHz
2nd: 21.3 MHz
3rd: 450 kHz - Image rejection
- ?
- Audio output
- 400 mW at ?% distortion / 8 ohm
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 2.4-3 V DC (2×R6/AA Alkaline or NiMH batteries)
- Current drain RX
- 90-290 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 68 × 115 × 32 mm (2.68 × 4.53 × 1.26 in)
- Weight
- 165 gr (5.8 oz)
- Form factor
- Handheld
- Manufactured
- Between 2005 and 200x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Backlit display
- Accessories
- -
- RigReference ID
- 6489
- MPN
- UNIDEN-BEARCAT-UBC000069XLT
Manuals, diagrams and brochures
- Uniden UBC69XLT Owner's Manual PDF - 1.43 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat UBC69XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Uniden-Bearcat UBC69XLT in Good condition is around:
- EUR 68
These estimates are based on the following prices:
