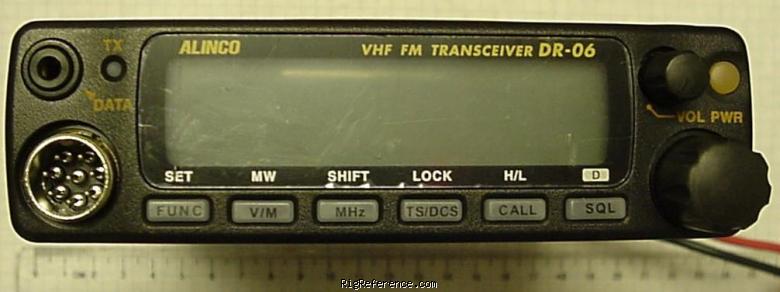

Alinco DR-06T

General characteristics

HAM bands

6m

Frequency stability

± 7 ppm

Tuning steps

5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz

Memories

100 channels in 1 bank(s)

Receiver

RX-range

40-70 MHz

Modulations

FM   N-FM

Sensitivity

0.25 µV (12 dB SINAD)

Selectivity

FM: 12 kHz (-6 dB), 28 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 16 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 450 KHz

Image rejection

?

Audio output

2 W into 8 ohm at 10% THD

Transmitter

TX-range

50-54 MHz

Modulations

FM   N-FM

RF-output

5 / 20 / 50 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

400-600 mA

TX

11 A max

Physical

Dimensions (w×h×d)

142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)

Weight

1,000 gr (2.2 lbs)

Form factor

Mobile

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Packet option (EJ-41U) not for DR-03T

Accessories

-

RigReference ID

2306

MPN

ALINCO-DR-000006T

Manuals, diagrams and brochures

Alinco DR-03/06 Instruction manual PDF - Unknown size, submitted by RigReference

Alinco DR-06T Service manual PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-06T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Alinco DR-06T in Good condition is around:

• USD 230 ~ USD 325
