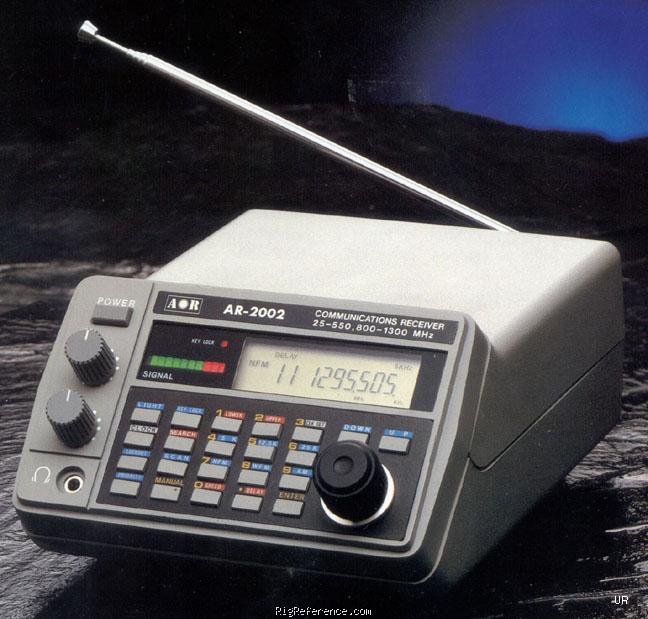

The AOR AR2002 VHF-UHF receiver covers from 25 to 550 MHz, and 800 to 1300 MHz in AM, FM-wide and FM-narrow modes. Twenty memories are available, each storing frequency and mode. The memories may be recalled or scanned. The complete coverage of the receiver can be scanned at 5, 12.5 or 25 kHz steps. Requires 12-14 VDC at 500 mA.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz
- Memories
- 20 channels in 1 bank(s) @ 5 channels/second
Receiver
- RX-range
- 25-550 / 800-1300 MHz
- Modulations
- AM N-FM W-FM
- Sensitivity
- AM: 1.0 µV (10 dB S/N)
N-FM: 0.35 µV (12 dB SINAD)
W-FM: 1.0 µV (12 dB SINAD) - Selectivity
- AM: 5 kHz (-6 dB), 10 kHz (-70 dB)
N-FM: 7.5 kHz (-6 dB), 20 kHz (-70 dB)
W-FM: 50 kHz (-6 dB), 250 kHz (-60 dB) - Filters
- ?
- Receiver system
- Triple conversion; PLL synthesizer / high level DBM
- IF-frequencies
- 1st: 750 MHz
2nd: 45.03 MHz
3rd: 5.5 MHz (W-FM), 455 kHz (N-FM/AM) - Image rejection
- 50 dB
- Audio output
- 1 W @ 10% THD
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12-14V DC
- Current drain RX
- 300~500mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 138 × 80 × 200 mm (5.43 × 3.15 × 7.87 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1985 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- RS-232
10dB Attenuator
Clock
Rotary control - Accessories
- -
- RigReference ID
- 2351
- MPN
- AOR-AR-002002
Manuals, diagrams and brochures
- AOR AR-2002 PDF - 22.03 MB, submitted by Berend
- AOR AR-2002 Leaflet PDF - 3.55 MB, submitted by Berend
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-2002. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Scanner / receiver equipment, the estimated value of the AOR AR-2002 is around:
- USD 143 ~ USD 266
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
