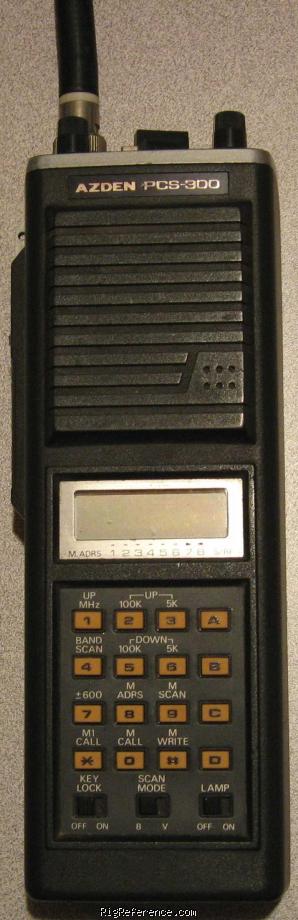

Azden PCS-300

Handheld VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Azden PCS-300 is a handheld VHF transceiver. It covers 144-148 MHz (Europe) or 142-150 MHz (USA) for both receive and transmit. The radio features an RF output of 3W on high and 1W on low. It has 1 memory bank with 8 channels. Power requirements are 9.6-12V DC (8R6 / AA). Dimensions are 184 × 65 × 44 mm. Current drain during transmit is a maximum of 800 mA. The radio weighs 640 gr.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 8 channels in 1 bank(s)

Receiver

RX-range: 144-148 MHz (Europe)
142-150 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 MHz (Europe)
142-150 MHz (USA)
Modulations: FM
RF-output: High: 3 W, Low: 1 W

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 9.6-12V DC (8R6 / AA)
Current drain RX: ?
TX: Max 800 mA

Physical

Dimensions (w×h×d): 65 × 184 × 44 mm (2.56 × 7.24 × 1.73 in)
Weight: 640 gr (1.4 lbs)
Form factor: Handheld
Manufactured: Between 1983 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2419
MPN: AZDEN-PCS-000300

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
