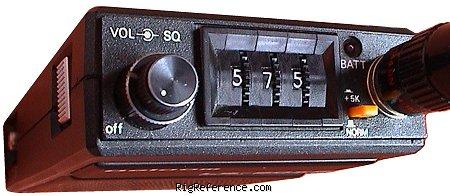

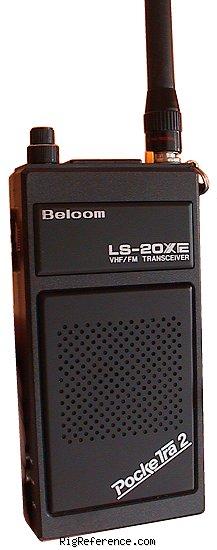

Belcom LS-20XE

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

5 kHz

Memories

?

Receiver

RX-range

144-146 MHz

Modulations

FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146 MHz

Modulations

FM

RF-output

High: 1 W, Medium: 500 mW, Low: 100 mW

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

4.8-6V DC (4 R03)

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

69 × 140 × 26 mm (2.72 × 5.51 × 1.02 in)

Weight

260 gr (9.2 oz) including batteries and antenna

Form factor

Handheld

Manufactured

Between 1983 and 198x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2480

MPN

BELCOM-LS-000020XE

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Belcom LS-20XE. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:
