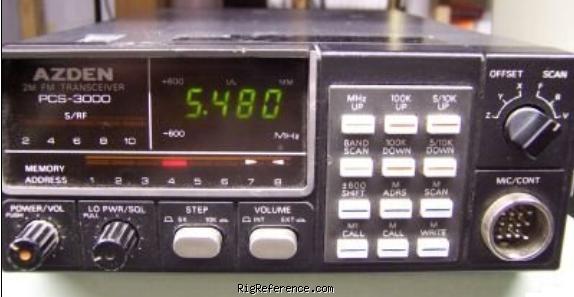

Azden PCS-3000

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Azden PCS-3000 is a mobile VHF transceiver. It covers 144-146 MHz (Europe) or 144-148 MHz (USA) for both reception and transmission. The RF output power is selectable between 25W and 5W. It features 1 memory bank with 8 channels. Power requirements are 13.8V DC. The current drain is a maximum of 700 mA while receiving and 5A while transmitting. Dimensions are 66 × 158 × 246 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 8 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz (Europe)
144-148 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Europe)
144-148 MHz (USA)
Modulations: FM
RF-output: High: 25 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 700 mA
TX: Max 5 A

Physical

Dimensions (w×h×d): 158 × 66 × 246 mm (6.22 × 2.60 × 9.69 in)
Weight: 2.50 kg (5.5 lbs)
Form factor: Mobile
Manufactured: Between 1981 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2420
MPN: AZDEN-PCS-003000

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Azden PCS-3000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Azden PCS-3000 is around:

USD 173 ~ USD 321

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by

Login or Register to submit prices
