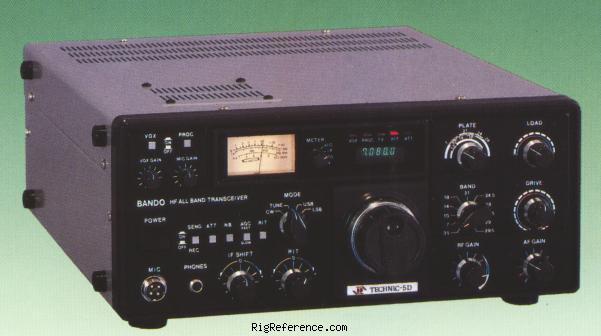

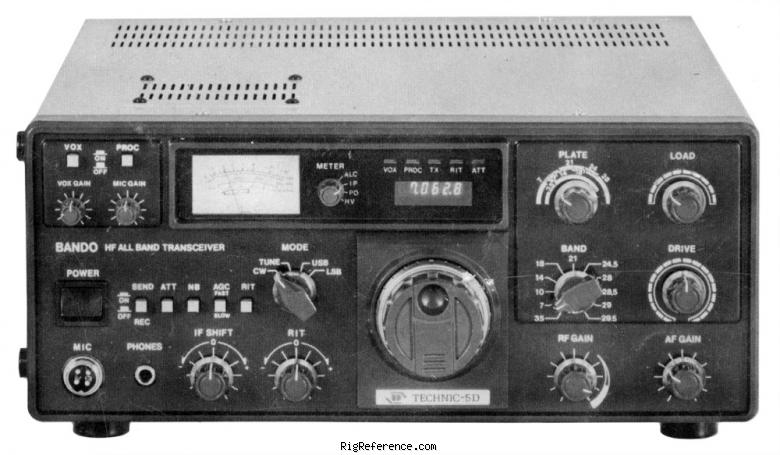

The Technic-5 is Bando's only HF all band transceiver. Released in 1987, the Technic-5 went though a design change in 1993 when the VFO design was changed from analogue to PLL. The Technic-5D has 2 6146B tubes, capable of generating 100W.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- CW SSB
- Sensitivity
- 0.25 µV (10 dB S/N)
- Selectivity
- SSB: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >50 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-80 m
- Modulations
- CW SSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 335 × 138 × 350 mm (13.19 × 5.43 × 13.78 in)
- Weight
- 13.50 kg (29.8 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1987 and 199x in Korea
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Digital frequency readout
IF-shift
Noise blanker
RIT
Speech processor
VOX - Accessories
- -
- RigReference ID
- 2444
- MPN
- BANDO-TECHNIC-000005D
Manuals, diagrams and brochures
- Bando Technic 3 & 5 Instruction manual PDF - Unknown size, submitted by RigReference
