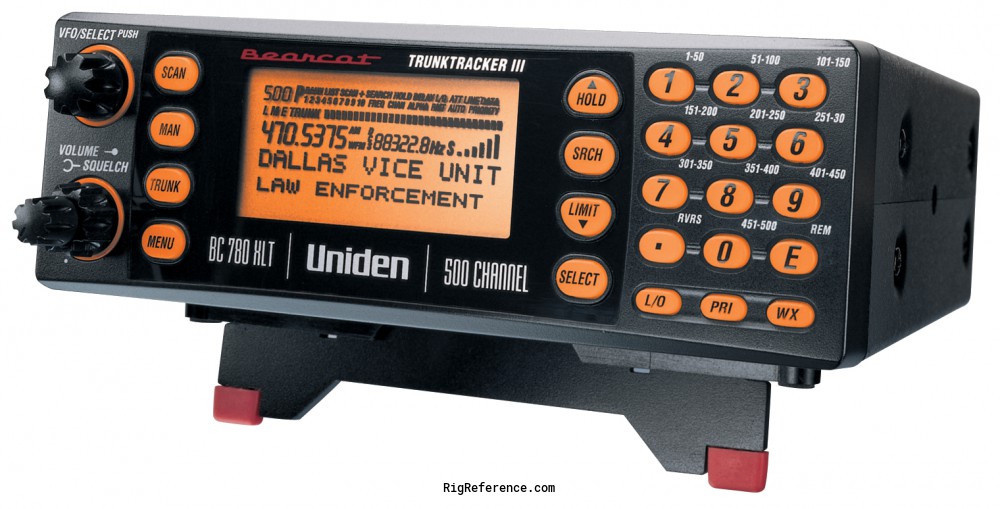

Uniden-Bearcat BC780XLT

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

5 / 7.5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz

Memories

500 channels in 10 bank(s) @ 100 channels/second

Receiver

RX-range

25-512 / 806-956 / 1240-1300 MHz (cellular blocked in the US)

Modulations

AM   FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

2 W

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

Max 700 mA

TX

-

Physical

Dimensions (w×h×d)

176 × 61 × 167 mm (6.93 × 2.40 × 6.57 in)

Weight

1.33 kg (2.9 lbs)

Form factor

Mobile

Manufactured

Between 2000 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Trunktracker III, tracks Motorola, EDACS and LTR systems
SAME w/FIPS
CTCSS / DCS
PC programmable
Alpha tags
Rotary control
Recorder control
Data skip
Auto store
Beep alert

Accessories

-

RigReference ID

2453

MPN

UNIDEN-BEARCAT-BC000780XLT

Manuals, diagrams and brochures

Uniden BC780 Programming Control Codes (v. 1.04) PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC780XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Uniden-Bearcat BC780XLT in Good condition is around:

• EUR 156
• USD 77 ~ USD 139

Price History Chart

These estimates are based on the following prices:
