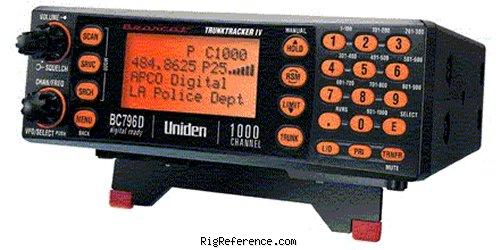

Uniden-Bearcat BC796D

Mobile HF/VHF/UHF Scanner / receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
25-512 / 806-956 / 1240-1300 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
5 / 6.25 / 7.5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz
Filters
?

Receiver

Modulations
AM   FM   W-FM   APCO-25
Sensitivity
?
Selectivity
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
240 mW

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
4.8V DC, 13.8V DC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
177 × 61 × 167 mm (6.97 × 2.40 × 6.57 in)
Weight
1.44 kg (3.2 lbs)
Form factor
Mobile
Manufactured
Between 2004 and 200x
MPN
UNIDEN-BEARCAT-BC000796D

Other features

Memories
1000 channels in 10 bank(s) @ 100 channels/second
Usage
Amateur / Ham radio operators
Features + options
APCO25 option
Alpha tags
Attenuator
Auto hold
Auto store
Backlit display
Beep alert
CTCSS / DCS
Data skip
PC programmable
Radio cloning
Rotary control
SAME w/FIPS
Service Search
Tape Recorder control
Trunktracker IV, tracks Motorola I, II & IIi and EDACS and LTR
Accessories
?

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC796D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Uniden-Bearcat BC796D is around:

  • EUR 80.00
Year Historic price Condition Submitted by
2005 EUR 500.00 Used / Good magee31
