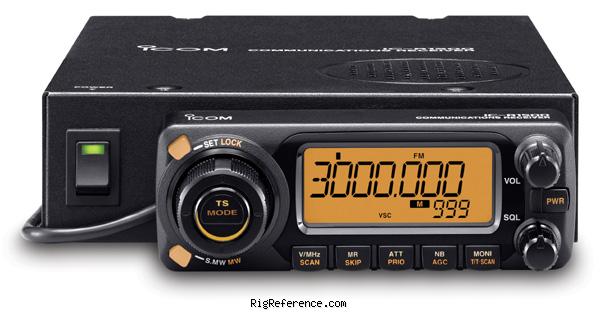

Also sold without the control panel as ICOM IC-PCR1500 for computer control only.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m  2000m  13cm
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.01-3300 MHz
Modulations
AM   FM   W-FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st:
2nd:
Image rejection
?
Audio output
Internal speaker

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
12V DC +/- 15%
Current drain RX
Max 1.25 A
TX
-

Physical

Dimensions (w×h×d)
146 × 41 × 206 mm (5.75 × 1.61 × 8.11 in) panel: 111×40×27 mm
Weight
1 gr (0.0 oz) Box + Panel
Form factor
Mobile
Manufactured
Between 2005 and 200x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS/DTCS
DSP option (UT-106)
Detachable front panel
Accessories
-
RigReference ID
3213
MPN
ICOM-IC-R001500
