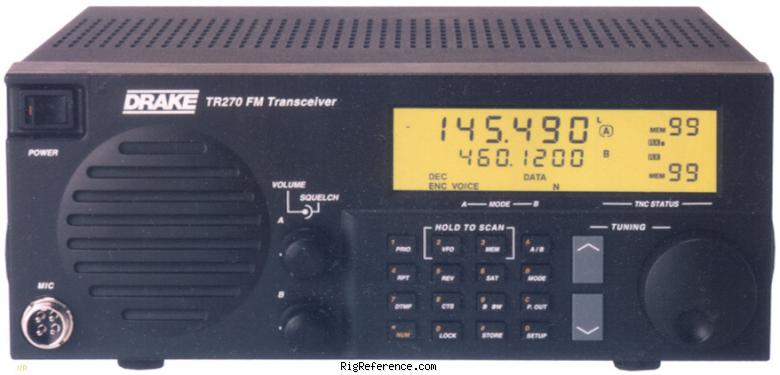

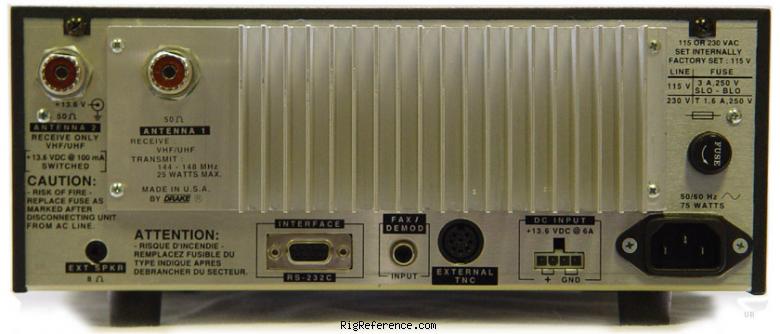

The Drake TR270 is a unique 2 meter FM transceiver with 440 MHz receive and is traditionally used in a base orientation. Dual receiver circuits are employed. Receiver "A" covers 144-148 MHz, and wideband Receiver "B" covers 136-174 and 420-470 MHz. This well built radio has a beautiful backlit LCD. Other features include keypad, multiple scan functions and both VFO and up/down tuning. 100 memories are available for each band, plus 200 additional memories for satellite frequencies. DTMF and CTCSS encode and decode are built in. There are 60 user-defined parameters to tailor the operation of this transceiver to your personal taste. Output power may be selected at 25, 10 or 1 watts. There are two antenna inputs on the back panel (one is for receive only).
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 400 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 / 420-470 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 1 / 10 / 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC or mains
- Current drain RX
- Max 1.2 A
- TX
- Max 8 A
Physical
- Dimensions (w×h×d)
- 280 × 120 × 343 mm (11.02 × 4.72 × 13.50 in)
- Weight
- 5.90 kg (13.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready
RS-232 - Accessories
- -
- RigReference ID
- 2600
- MPN
- DRAKE-TR000270
Manuals, diagrams and brochures
- Drake Tr270FM VHF Tranciever Manual PDF - 16.85 MB, submitted by Berend
