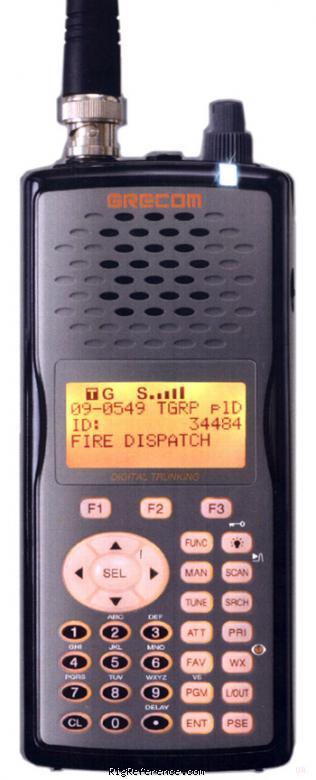

GRE / GRECOM PSR-500

General characteristics

HAM bands

6m  70cm  33cm  23cm  4m

Frequency stability

?

Tuning steps

?

Memories

1800 channels in 1 bank(s)

Receiver

RX-range

25-54 / 108-174 / 216-512 / 796-824 / 849-869 / 896-960 / 1240-1300 MHz

Modulations

AM   FM   APCO-25

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 380.8 MHz
2nd: 21.4 MHz
3rd: 455 KHz

Image rejection

?

Audio output

?

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

4.8-6V DC (4R6/AA) or 9V DC external

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

?

Weight

240 gr (8.5 oz)

Form factor

Handheld

Manufactured

Between 200x and 200x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/DCS
Multitrunking, tracks Motorola, EDAS, LTR and digital APCO (9600 bd)
Weather alert/SAME/Skywarn
Spectrum sweeper

Accessories

-

RigReference ID

2709

MPN

GRE-/-GRECOM-PSR-000500
