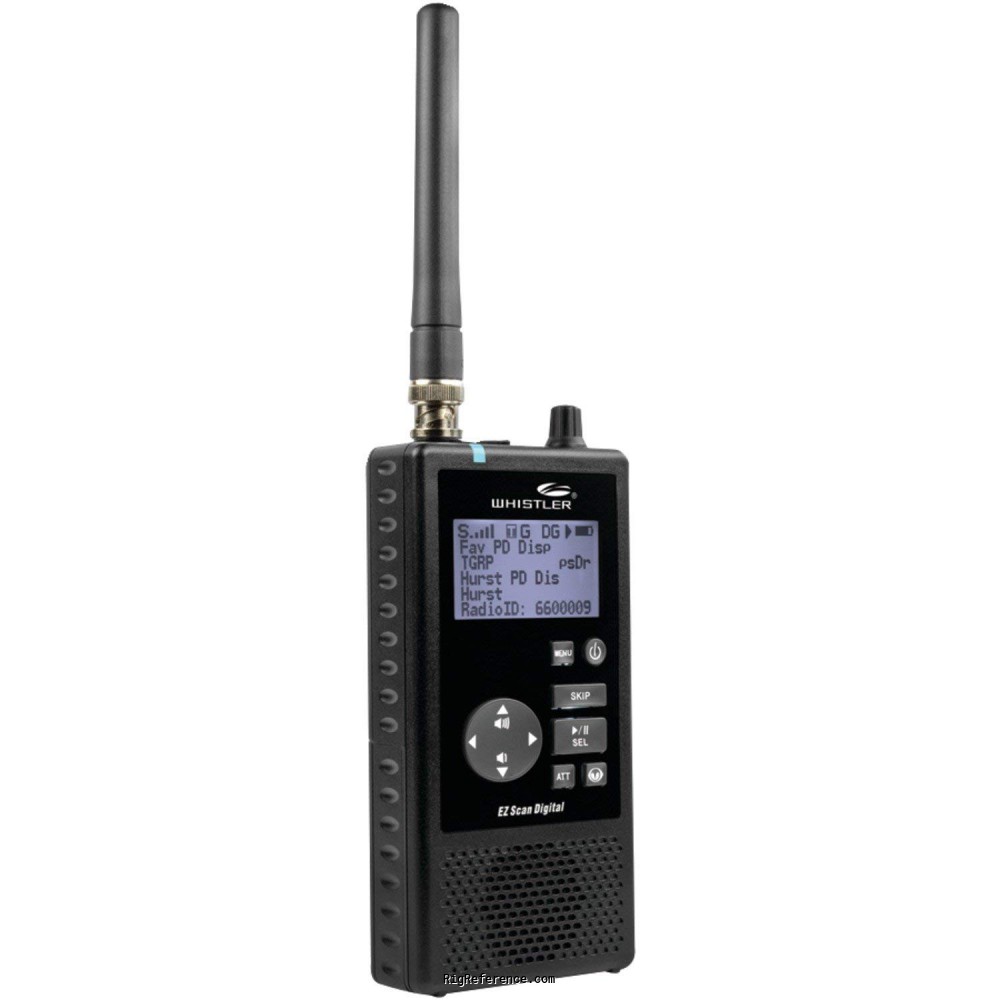

Whistler WS1080 HANDHELD SCANNER RADIO

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
29-54 / 108-174 / 216-512 / 764-960 / 1240-1300 MHz (cellular blocked in the US)
TX-range
-
HAM bands
6m  2m  1.25m  70cm  33cm  23cm
Stability
-
Tuning steps
3.125 / 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 kHz
Filters
-

Receiver

Modulations
AM   FM   N-FM   P25
Sensitivity
5-54 MHz: 0.2 µV (12 dB SINAD)
108-137 MHz: 0.4 uV
137-174 MHz: 0.3 µV (12 dB SINAD)
216-300 MHz: 0.4 µV (12 dB SINAD)
300-406 MHz: 0.8 µV (12 dB SINAD)
406-512 MHz: 0.4 µV (12 dB SINAD)
764-960 MHz: 0.5 µV (12 dB SINAD)
1240-1300 MHz: 0.5 µV (12 dB SINAD)
Selectivity
-
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 380.8 MHz
2nd: 21.4 MHz
3rd: 455 kHz
Image rejection
-
Audio output
500 mW

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
9 V DC or batteries
Current drain RX
170 mA
TX
-

Physical

Dimensions (w×h×d)
67 × 135 × 28 mm (2.64 × 5.31 × 1.10 in)
Weight
210 gr (7.4 oz) without antenna and batteries
Form factor
Handheld
Manufactured
Between 2014 and 201x in USA
MPN

Other features

Memories
10000 channels in 200 bank(s) @ 55 channels/second
Usage
Amateur / Ham radio operators
Features + options
Object oriented memory
Trunking: Motorola I/II/III, EDACS, LTR
SAME/FIPS weather alert
Spectrum sweeper
Weather channels
USB interface
CTCSS/PL + DCS
MicroSD card
Discriminator output
Audio recorder
Accessories
-

Manuals, diagrams and brochures

Whistler WS-1080 / WS-1088 User Guide submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Whistler WS1080. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Whistler WS1080 might be around:

  • EUR 379.00
Price Condition Year User
EUR 380.00 New / Mint 2019 RigReference
