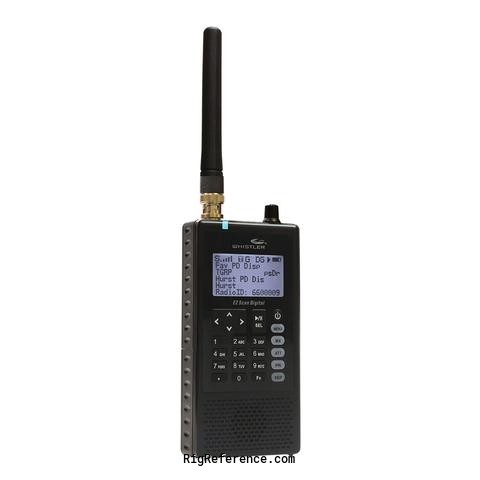

Whistler WS1088 DIGITAL HANDHELD SCANNER RADIO

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Whistler WS1088 is a handheld multi-system adaptive Digital tracking trunking scanner with Motorola P25 Phase I, X2-TDMA and Phase II capabilities. All USA/Canada frequencies are pre-programmed onto the included SD card making it ready to use out of the box.

Frequency range

RX-range
25-54 / 108-174 / 216-512 / 764-960 / 1240-1300 MHz (excl. cellular)
TX-range
-
HAM bands
11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m
Stability
-
Tuning steps
3.125 / 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 25 kHz
Filters
-

Receiver

Modulations
AM   FM   DMR   P25
Sensitivity
FM (12 dB SINAD unless otherwise noted)
VHF Low: 0.2 µV
VHF Aircraft (AM): 0.4 µV
VHF High 137-174 MHz: 0.3 µV
VHF High 216-300 MHz: 0.4 µV
UHF Low 300-406: 0.8 µV
UHF/UHF-T 406-512 MHz: 0.4 µV
UHF High 764-960 MHz: 0.5 µV
1240 -1300 MHz: 0.5 µV
Selectivity
-
Receiver system
Triple conversion PLL super heterodyne
IF-frequencies
1st: 380.8 MHz
2nd: 21.4 MHz
3rd: 455 kHz
Image rejection
-
Audio output
Built-in 36 mm 8 Ohms dynamic speaker

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
DC 4.8-6 Volts (4 AA batteries) or 5 V DC USB
Current drain RX
170 mA typical
TX
-

Physical

Dimensions (w×h×d)
135 × 67 × 28 mm (5.31 × 2.64 × 1.10 in)
Weight
210 gr (7.4 oz) Without antenna and batteries
Form factor
Handheld
Manufactured
Between 2016 and 20xx in USA
MPN

Other features

Memories
1000000 channels in 1 bank(s) @ 80 channels/second
Usage
Amateur / Ham radio operators
Features + options
Functional keypad and backlit LCD display
• USA/Canada Radio Reference database on SD Card
• Quick Location based Programming (City, Zip,
County)
• Detects and masks encrypted voice audio
• Decodes Radio ID/Talkgroup ID data
• Upgradeable CPU Firmware, DSP Firmware and
Database Library
• USB Interface 2.0 or earlier
• Improved P25 Functionality (Phase II, X2-TDMA)
• PC Software to customize your settings
• Signal Strength Meter
• 200 Scanlists
• Weather Radio Functions
• Multi–system Trunking
