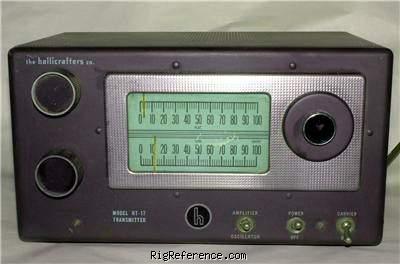

Hallicrafters HT-17 HF Transmitter

 (3.0/5)  Add a review   View all reviews (1)   Add to my shack



Login or Register to upload images

Crystal controlled CW transmitter covering 80 to 10 meters. RF-output 25 watts max., on the higher bands the output drops off somewhat and makes 12 watts on 10 meters. Unit comes with a pilot-lamp type tuning indicator and a set of 40 meter coils. The tuning indicator light could be replaced by the optional tuning meter model SM-17. Additional coil-sets were priced at USD 7,50

New price 1947 in the US: $69.50

Frequency range

RX-range
-
TX-range
10, 15, 20, 40 & 80 m
HAM bands
80m  40m  20m  15m  10m
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
-
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
CW
RF-Output
10-20 m: 10 W, 40-80 m: 15 W

Connections

Antenna
Clamps / screws
Impedance
-

Electrical

Power requirements
Mains (105-125 V AC)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
328 × 188 × 218 mm (12.91 × 7.40 × 8.58 in)
Weight
9.50 kg (21.0 lbs)
Form factor
Unknown
Manufactured
Between 1947 and 194x in USA
MPN
HALLICRAFTERS-HT-000017

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Reviews & stories

HT-17 My First Rig

Hallicrafters HT-17, HF Transmitter

I had an HT-17 on loan from another ham. It was my first transmitter. My receiver was a Knight Kit Ocean Hopper. The HT-17 was easy to tune and gave me much
happiness. It as later replaced by the Johnson Viking Adventurer transmitter and my new receiver was the Hallicrafters S-40A.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 1962

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Hallicrafters HT-17. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Hallicrafters HT-17 might be around:

  • USD 0.00
Price Condition Year User
USD 69.50 New / Mint 1947 RigReference
