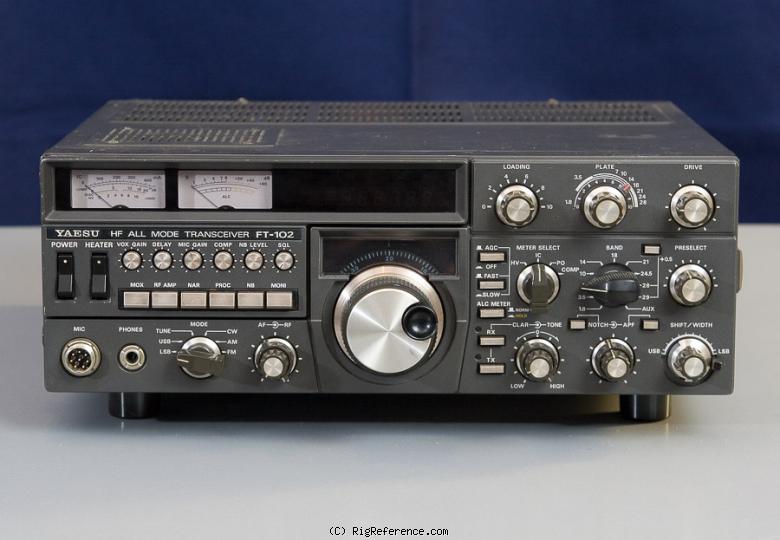

The Yaesu FT-102 is a 10-160 m + WARC transceiver supporting AM/SSB/CW modulations. Maximum RF-output is 100 W. Receiver system is Double conversion superheterodyne with IF frequencies of 1st: 8.2 MHz and 2nd: 455 KHz. Image rejection is >70 dB. The radio features VOX. Dimensions are 129 × 368 × 310 mm. It weighs 15 kg and operates on Mains power.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB FSK
- Sensitivity
- AM: 1 µV (10 dB (S+N)/N)
FM: 0.4 µV (20 dB quieting)
SSB: 0.25 µV (10 dB (S+N)/N)
CW: 0.18 µV (10 dB (S+N)/N) - Selectivity
- AM/SSB/CW: 2.7 kHz (-6 dB), 4.8 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 8.2 MHz
2nd: 455 KHz - Image rejection
- >70 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB FSK
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 368 × 129 × 310 mm (14.49 × 5.08 × 12.20 in)
- Weight
- 15.00 kg (33.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1982 and 1984 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Tube hybrid
VOX - Accessories
- -
- RigReference ID
- 4237
- MPN
- YAESU-FT-000102
Manuals, diagrams and brochures
- Yaesu FT-102 Instruction Manual PDF - Unknown size, submitted by RigReference
- Yaesu FT-102 Technical Supplement PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-102. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-102 in Good condition is around:
- AUD 400
These estimates are based on the following prices:
