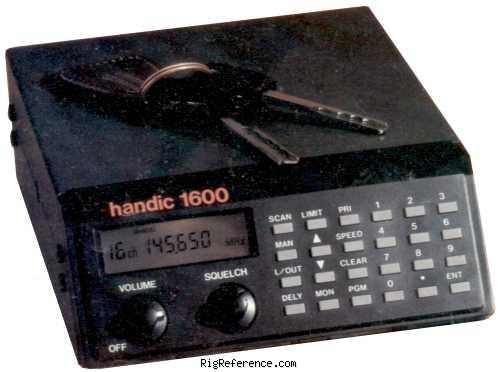

Handic 1600 Desktop VHF/UHF Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
68-88 / 108-136 / 138-174 / 380-512 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM
Sensitivity
AM 108-136 MHz: 2 µV (20 dB S/N)
FM: 68-88 MHz: 0.5 µV (20 dB S/N)
FM: 138-174/380-512 MHz: 1 µV (20 dB S/N)
Selectivity
+/- 9 kHz (-6 dB), +/-15 kHz (-50 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 KHz
Image rejection
50 dB @ 154 MHz
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
12V DC (plus a 9 V battery for memory backup)
Current drain RX
120 mA (squelched)
TX
-

Physical

Dimensions (w×h×d)
130 × 50 × 180 mm (5.12 × 1.97 × 7.09 in)
Weight
-
Form factor
Base Station
Manufactured
Between 19xx and 19xx

Other features

Memories
16 channels in 1 bank(s) @ 16 channels/second
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Handic 1600 Owners Manual submitted by RigReference
