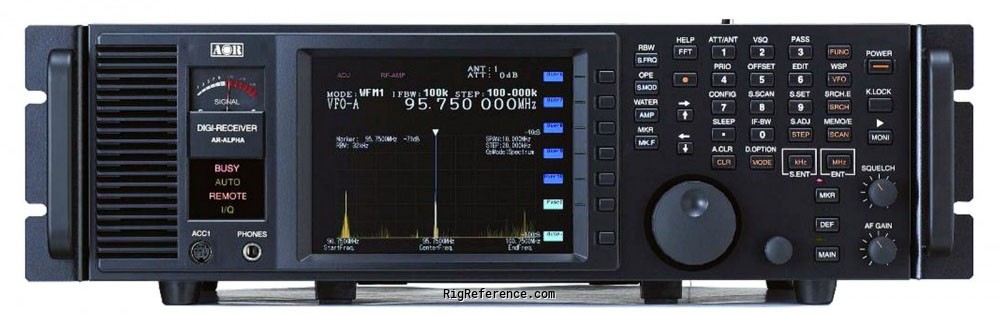

AOR AR-Alpha B Desktop HF/VHF/UHF Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

North-American model of the AOR AR-Alpha.
AR-Alpha U: Unblocked, government version.
In 2017 the AOR AR-Alpha II was announced.

Frequency range

RX-range
0.01-3500 MHz (cellular blocked)
TX-range
-
HAM bands
-
Stability
-
Tuning steps
1 / 10 / 50 / 100 / 500Hz / 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 / 500 kHz
Filters
-

Receiver

Modulations
AM   AM-sync   FM   W-FM   CW   SSB   TV
Sensitivity
AM (BW=6 kHz, 10 dB S/N)
0.1-1.7 MHz: 5 µV
1.7-25 MHz: 5 µV
25-1030 MHz: 2.3 µV
1030-3300 MHz: 1.3 µV
FM (BW=15 kHz, 12 dB SINAD)
25-480 MHz: 2.5 µV
480-1696 MHz: 0.8 µV
1696-3300 MHz: 1.5 µV
W-FM (12 dB SINAD)
25-1696 MHz: 1.3 µV
1696-3300 MHz: 1.5 µV
Selectivity
-
Receiver system
Triple-conversion superheterodyne (Zero-IF) DSP from IF to LF
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + N-type
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
1.5-2.2 A
TX
-

Physical

Dimensions (w×h×d)
420 × 130 × 308 mm (16.54 × 5.12 × 12.13 in)
Weight
7.70 kg (17.0 lbs)
Form factor
Base Station
Manufactured
Between 2006 and 200x
MPN

Other features

Memories
2000 channels in 1 bank(s) @ 70 channels/second
Usage
Amateur / Ham radio operators
Features + options
Software defined receiver
USB 2.0
Waterfall and spectrum display
6" TFT
TV reception (PAL, SECAN, NTSC)
