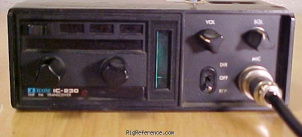

ICOM IC-230

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

10 / 100 kHz

Memories

67 channels in 1 bank(s)

Receiver

RX-range

146-148 MHz

Modulations

FM

Sensitivity

≥ 0.4 µV (20 dB S/N)

Selectivity

16 kHz (-6 dB)
30 kHz (-50 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 455 kHz

Image rejection

?

Audio output

1.5 W / 8 ohm

Transmitter

TX-range

146-148 MHz

Modulations

FM

RF-output

High: 10 W, Low: 1 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

400 mA

TX

2.5 A max

Physical

Dimensions (w×h×d)

156 × 58 × 247 mm (6.14 × 2.28 × 9.72 in)

Weight

2.40 kg (5.3 lbs)

Form factor

Mobile

Manufactured

Between 1975 and 197x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2999

MPN

ICOM-IC-000230
