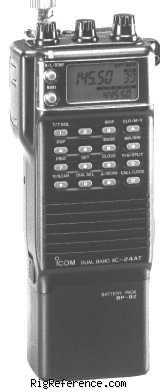

The ICOM IC-24AT is a dual-band portable transceiver. The IC-24AT is also sold in Australia and Asia, but with slightly different frequency ranges. The European counterpart is the ICOM IC-24ET.

*) Frequency range for Australian and Asian models may differ.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
Memories
42 channels in 1 bank(s)

Receiver

RX-range
138-174 / 440-450 MHz *)
Modulations
FM
Sensitivity
Less than 0.18µV (12dB SINAD)
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 30.875 MHz
2nd: 455 kHz
Image rejection
?
Audio output
200mW, 8 ohm @ 10% THD

Transmitter

TX-range
140-150 / 440-450 MHz *)
Modulations
FM
RF-output
5 / 3.5 / 1.5 / 0.5W

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
6-16V DC
Current drain RX
16-150mA
TX
0.5-1.6A

Physical

Dimensions (w×h×d)
52 × 136.5 × 34.5 mm (2.05 × 5.37 × 1.36 in) Including BP-82 battery pack
Weight
340 gr (12.0 oz) Including battery and antenna
Form factor
Handheld
Manufactured
Between 1989 and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Built-in clock/timer
DTMF
Direct entry keypad
Optional CTCSS (UT-50)
Optional DCS (UT-51)
Accessories
-
RigReference ID
3011
MPN
ICOM-IC-000024AT

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
My very first Transceiver 11 years ago by Dan
Icom IC-24AT Excellent HT 13 years ago by Halsky
IC-24AT Crossband Repeater Function and etc. 14 years ago by N2OBS

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-24AT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-24AT is around:

  • USD 17.00 ~ USD 11.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 110.00 Used / Mint Halsky
2009 USD 85.00 Used / Good N2OBS
1992 USD 250.00 Used / Good Dan
