ICOM IC-24ET

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-24ET rigs and spare parts on eBay Find the ICOM IC-24ET on Amazon
We receive a small fee when you buy through these links, thank you!

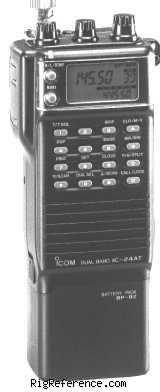

The ICOM IC-24ET is a dual-band portable transceiver. The American counterpart is the ICOM IC-24AT.

*) Frequency range may differ based on local legislation.

Frequency range

RX-range
144-146 / 430-450 MHz *)
TX-range
144-146 / 430-450 MHz *)
HAM bands
2m  70cm
Stability
?
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
Filters
?

Receiver

Modulations
FM
Sensitivity
Less than 0.18µV (12dB SINAD)
Selectivity
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 30.875 MHz
2nd: 455 kHz
Image rejection
?
Audio output
200mW, 8 ohm @ 10% THD

Transmitter

Modulations
FM
RF-Output
5 / 3.5 / 1.5 / 0.5W

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
6-16V DC
Current drain RX
16-150mA
TX
0.5-1.6A

Physical

Dimensions (w×h×d)
52 × 136.5 × 34.5 mm (2.05 × 5.37 × 1.36 in) Including BP-82 battery pack
Weight
340 gr (12.0 oz) Including battery and antenna
Form factor
Handheld
Manufactured
Between 1989 and 19xx
MPN
ICOM-IC-000024ET

Other features

Memories
42 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Built-in clock/timer
DTMF
Direct entry keypad
Optional CTCSS (UT-50)
Optional DCS (UT-51)
Accessories
?
