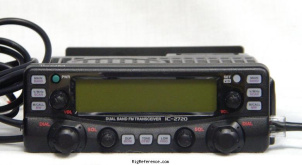

ICOM IC-2720H Mobile VHF/UHF Transceiver

 (4.2/5)  Add a story   View all stories (1)   Add to my shack



The ICOM IC-2720H is a 2 meter / 70 cm dual bander. It features a separate front panel, wideband receive, 3 power settings, built-in CTCSS decode/encode, selectable amber/green display, PC compatibility and 212 memory channels. Power output is 50/15/5 watts on 2 meters and 35/15/5 watts on 440 MHz. The 2720H supports cross-band repeat. It is 9600 BPS packet ready too (6 pin DIN). The 2720H also includes a built-in duplexer, full function backlit HM-133 remote DTMF hand mic, MB-84 remote controller mounting bracket, separation cable, radio mobile mounting bracket, OPC-1132 9.8 foot DC power cable and spare fuses.

Frequency range

RX-range
144-148 / 440-450 MHz
TX-range
144-148 / 440-450 MHz
HAM bands
2m  70cm
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 50/35 W, Medium: ?/? W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
12 A max

Physical

Dimensions (w×h×d)
140 × 50 × 270 mm (5.51 × 1.97 × 10.63 in) main unit + controller
Weight
1.32 kg (2.9 lbs) main unit + controller
Form factor
Mobile
Manufactured
Between 2002 and 200x
MPN

Other features

Memories
212 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS & DTCS. 9k6 packet ready. Twin RX
Accessories
-

Manuals, diagrams and brochures

ICOM IC-2720H Instruction Manual.pdf submitted by RigReference
ICOM IC-2720H Instruction Manual (Errata).pdf submitted by RigReference

Upload relevant documents

Show other ICOM documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-2720H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Price Condition Year User

To submit a price, please login or register an account.

Stories & reviews

IC 2720

ICOM IC-2720H, Mobile VHF/UHF Transceiver

Have had one of these for about a year.Works very well..Some minor intermod and no alphatags but thats not a big deal

Written by kb8rya on Dec 1, 2009

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in
USD 165.00
