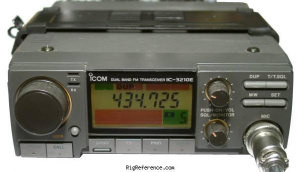

ICOM IC-3210E

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-3210E rigs and spare parts on eBay Find the ICOM IC-3210E on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
138-174 / 400-470 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
0.18 µV (12 dB SINAD)
Selectivity
12.5 kHz (-6 dB), 30 kHz (-60 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 30.875 MHz - Crystal filter: 30M15B
2nd: 455 KHz - Ceramic filter: CFW455E
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 25/25 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
550-900 mA
TX
3.6-7.6 A

Physical

Dimensions (w×h×d)
140 × 50 × 180 mm (5.51 × 1.97 × 7.09 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 1988 and 1990 in Japan
MPN
ICOM-IC-003210E

Other features

Memories
20 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS/PL for TX is standard while CTCSS/PL for RX is optional.
