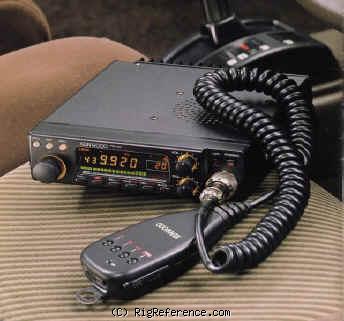

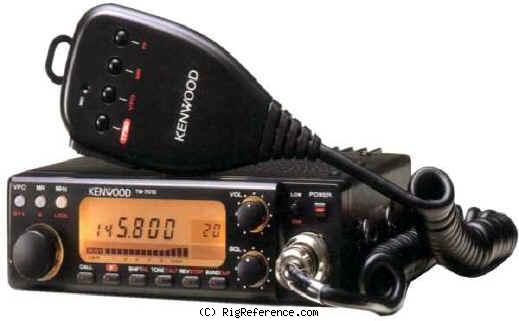

Kenwood TM-701E

Mobile VHF/UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

The Kenwood TM-701E is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. The RF output is High: 25/25 W, Low: 5/5 W. It features 1 memory bank with 20 channels. Power requirements are 11-16V DC. Dimensions are 40 × 140 × 200 mm. Current drain is Max 0.7 A (receive) and Max 6.9 A (transmit).

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 25/25 W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 11-16V DC
Current drain RX: Max 0.7 A
TX: Max 6.9 A

Physical

Dimensions (w×h×d): 140 × 40 × 200 mm (5.51 × 1.57 × 7.87 in)
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 1989 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3411
MPN: KENWOOD-TM-000701E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
