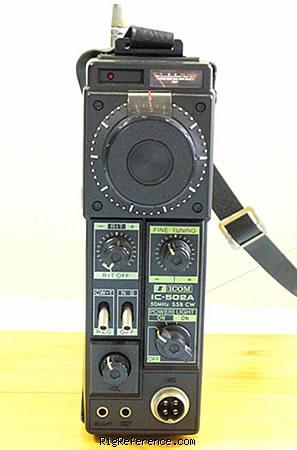

The ICOM IC-502A is one of those in between form factors. The size is like a mobile radio, but it allows battery powered operation, which makes it more portable or even handheld.
The previous model, the ICOM IC-502, which was introducted in 1975 suffered from frequency drift and was difficult to tune. The A model fixed both problems and was a very popular radio. 4 meters (70MHz) modifications exist for the IC-502A.
The IC-502A was followed by the ICOM IC-505 in 1982.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 50-52 MHz
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 50-52 MHz
- Modulations
- CW SSB
- RF-output
- 3 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- ?V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 1980 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- VXO
- Accessories
- -
- RigReference ID
- 3116
- MPN
- ICOM-IC-000502A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-502A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-502A in Good condition is around:
- GBP 395
These estimates are based on the following prices:
