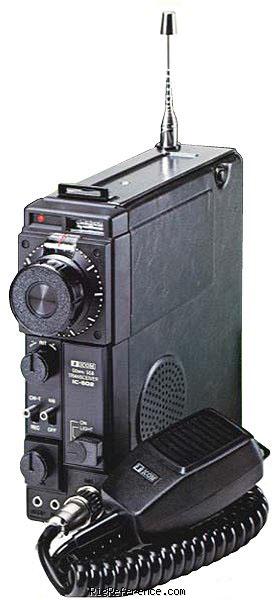

The ICOM IC-502 is a bookshelf portable. The size allows one to carry it around, but most 502's will probably spend most of their time standing in a bookshelf. The IC-502 had very coarse tuning and required a very steady hand to operate and it suffered from frequency drift. Both problems were solved in the ICOM IC-502A in 1980.

This rig is part of a range of models:

The ICOM IC-502 - 6 Meter SSB
The ICOM IC-202 - 2 Meter SSB
The ICOM IC-212 - 2 Meter FM (European Model)
The ICOM IC-215E - 2 Meter FM
The ICOM IC-302 - 70 cm SSB (European Model)
The ICOM IC-402 - 70 cm SSB

General characteristics

HAM bands
6m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
50-52 MHz
Modulations
CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
50-52 MHz
Modulations
CW   SSB
RF-output
3 W

Connections

Antenna
Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
?V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Handheld
Manufactured
Between 1975 and 198x

Other features

Usage
Amateur / Ham radio operators
Features + options
VXO
Accessories
-
RigReference ID
3115
MPN
ICOM-IC-000502

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-502. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-502 is around:

  • USD 21.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2009 USD 165.00 Used / Mint jeffro
