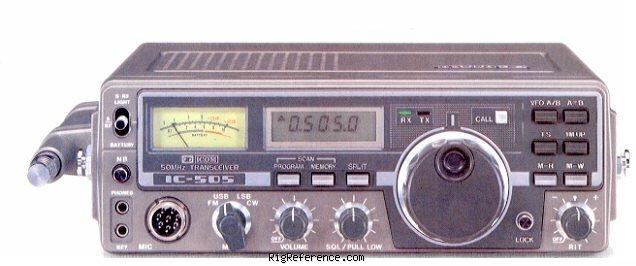

The ICOM IC-505 followed in the footsteps of the popular ICOM IC-502 and ICOM IC-502A.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 50-54 MHz
- Modulations
- All mode
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 50-54 MHz
- Modulations
- All mode
- RF-output
- 3 W @ 6 VDC, 10 W @ 13.8 VDC
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 6V DC (4LR20) or 13.8V DC external
- Current drain RX
- 300 mA
- TX
- Max 2.9 A (10 W)
Physical
- Dimensions (w×h×d)
- 230 × 76 × 189 mm (9.06 × 2.99 × 7.44 in)
- Weight
- 3.20 kg (7.1 lbs) with batteries
- Form factor
- Handheld
- Manufactured
- Between 1982 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3117
- MPN
- ICOM-IC-000505
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-505. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-505 is around:
- USD 5.00
These estimates are based on the following prices:
