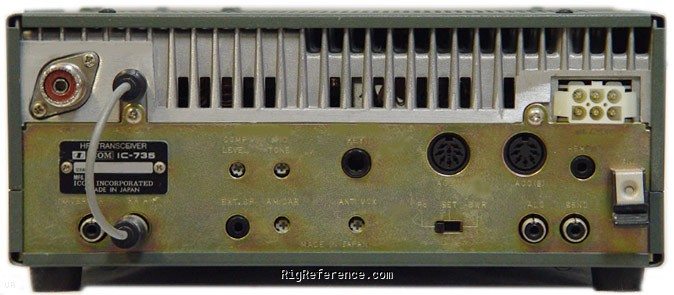

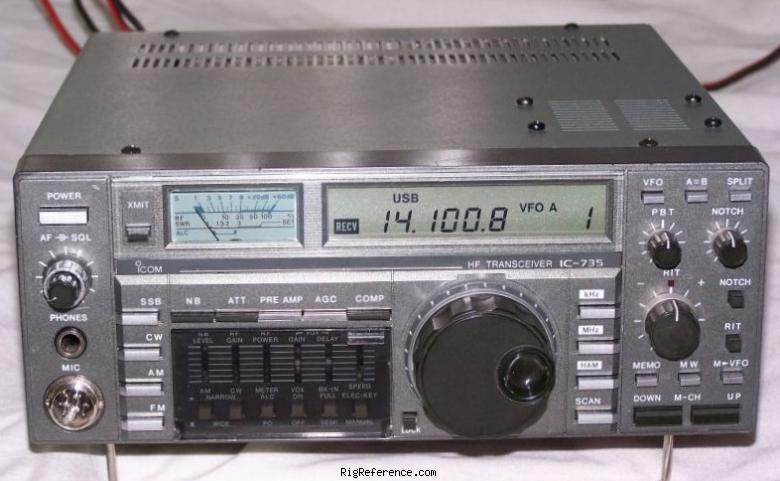

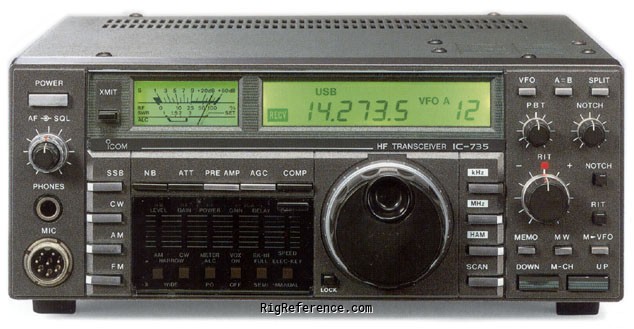

The ICOM IC-735 is a beautiful example of 1980's craftsmanship. This transceiver packs a 100 W of power into a compact housing and gives HF coverage from 160 up to 10 meters in CW, SSB, AM and FM. Receiver coverage spans 100 kHz to 30 MHz. 12 digital memories, dual VFOs, RIT, Speech compressor, full QSK and a Noise Blanker add to the user-friendliness of this model. Antenna is connection through an SO-239 jack on the back. Operates on 13.8 V DC and requires an external PSU (20 A max).
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 W (AM 10-40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 1.2-1.5 A
- TX
- 20 A max
Physical
- Dimensions (w×h×d)
- 241 × 94 × 272 mm (9.49 × 3.70 × 10.71 in)
- Weight
- 5.00 kg (11.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1985 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3145
- MPN
- ICOM-IC-000735
Manuals, diagrams and brochures
- ICOM IC-735 Instruction Manual PDF - 7.17 MB, submitted by Gerd
- ICOM IC-735 Service Manual PDF - 53.38 MB, submitted by BandRunner
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Works well but has its quirks | 1 year ago by kk7dxy | |
| Favorite back-up rig | 11 years ago by NH6RF | |
| Brilliant Transceiver | 12 years ago by GW1MCD | |
| Excellent Rig Built to Last | 12 years ago by KA9OFM |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-735. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-735 is around:
- USD 26.00 ~ USD 256.00
- GBP 225.00 ~ GBP 32.00
These estimates are based on the following prices:
