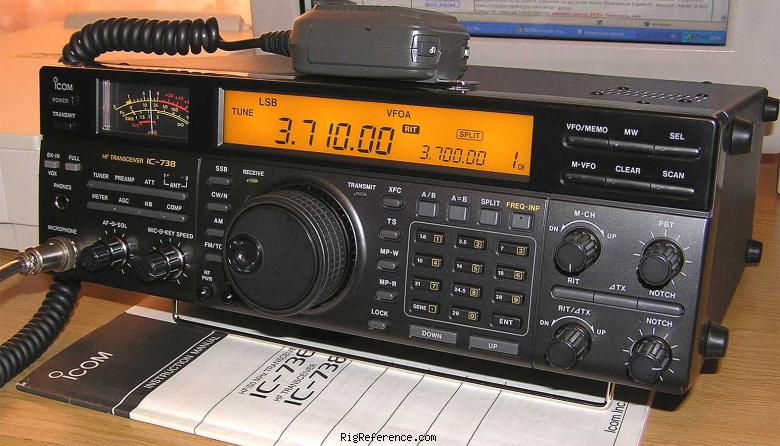

The ICOM IC-738 is a 10-160 m + WARC transceiver. RF output is 10-100 W (AM 4-40 W). It features built-in auto-AT and twin RX. Power requirements are 13.8V DC. Current drain in receive mode is 1.6-2.1 A, and max current drain in transmit mode is 20 A. Dimensions are 110 × 333 × 285 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.3-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 W (AM 4-40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 1.6-2.1 A
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 333 × 110 × 285 mm (13.11 × 4.33 × 11.22 in)
- Weight
- 8.60 kg (19.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1994 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in auto-AT. Twin RX
- Accessories
- -
- RigReference ID
- 3149
- MPN
- ICOM-IC-000738
Manuals, diagrams and brochures
- IC-736 IC 738 User Manual PDF - 7.32 MB, submitted by Ian
- IC-736 IC 738 Service Manual PDF - 8.08 MB, submitted by Ian
- IC-736 IC 738 Review 1995 PDF - 1.09 MB, submitted by Ian
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-738. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-738 is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
