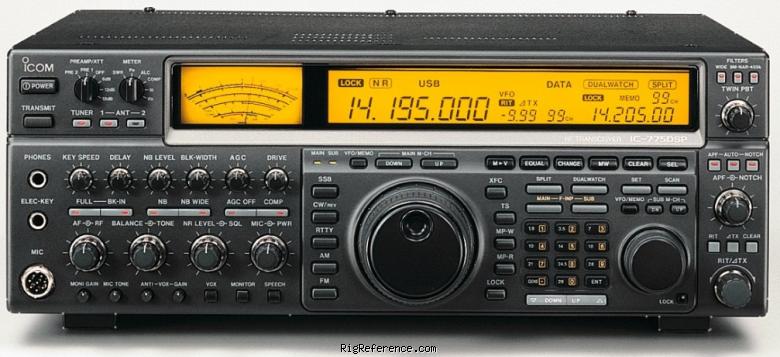

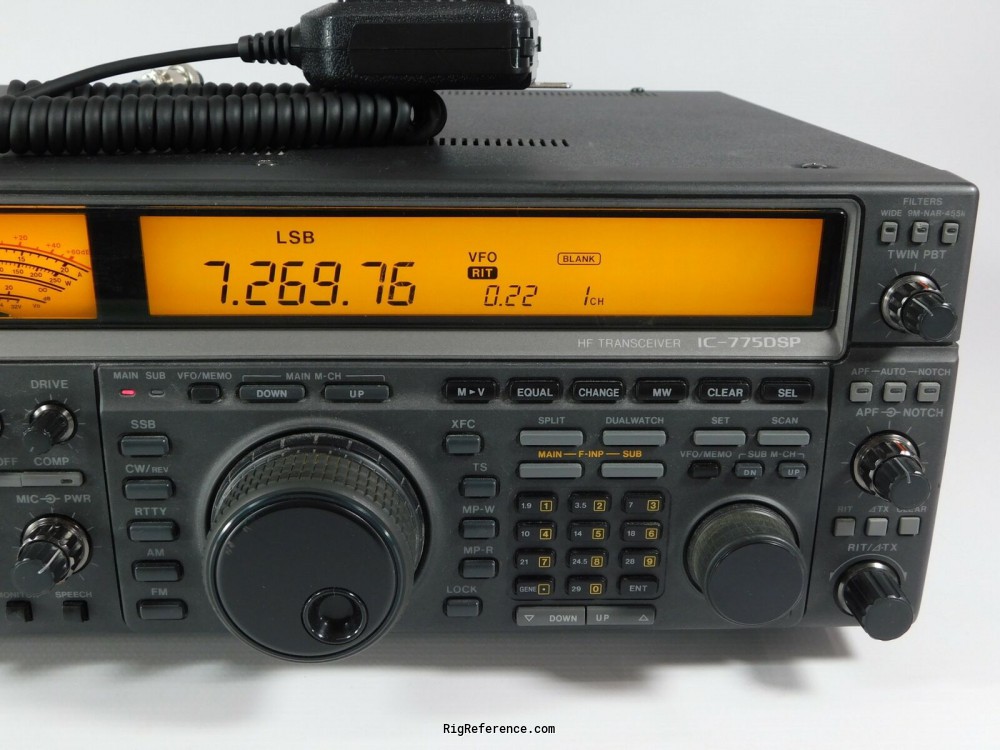

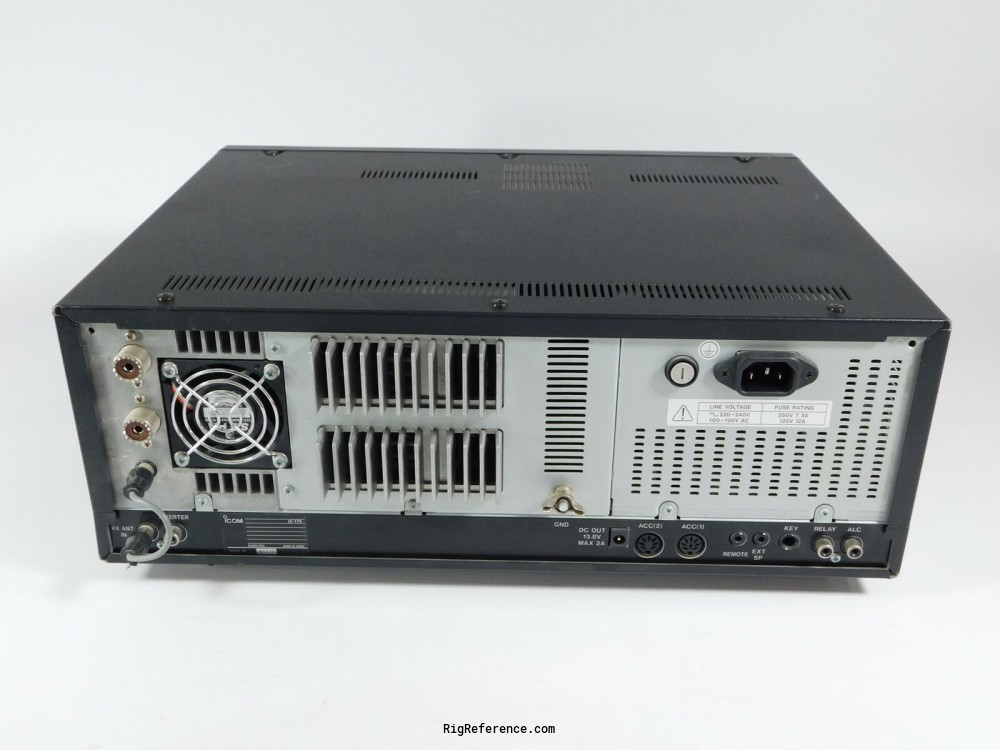

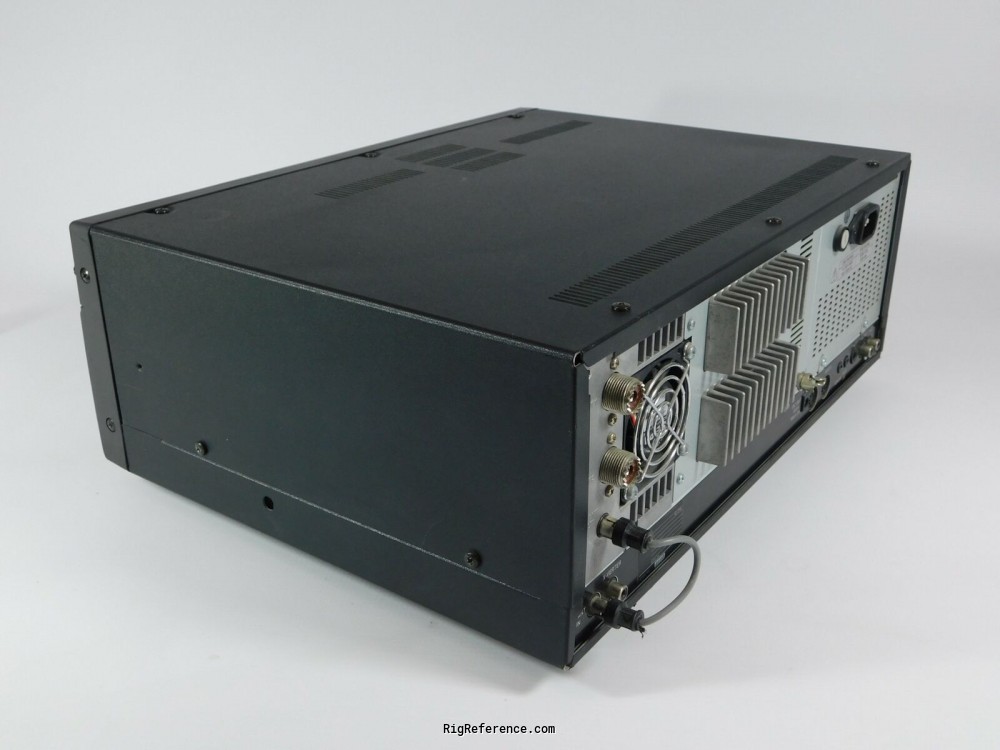

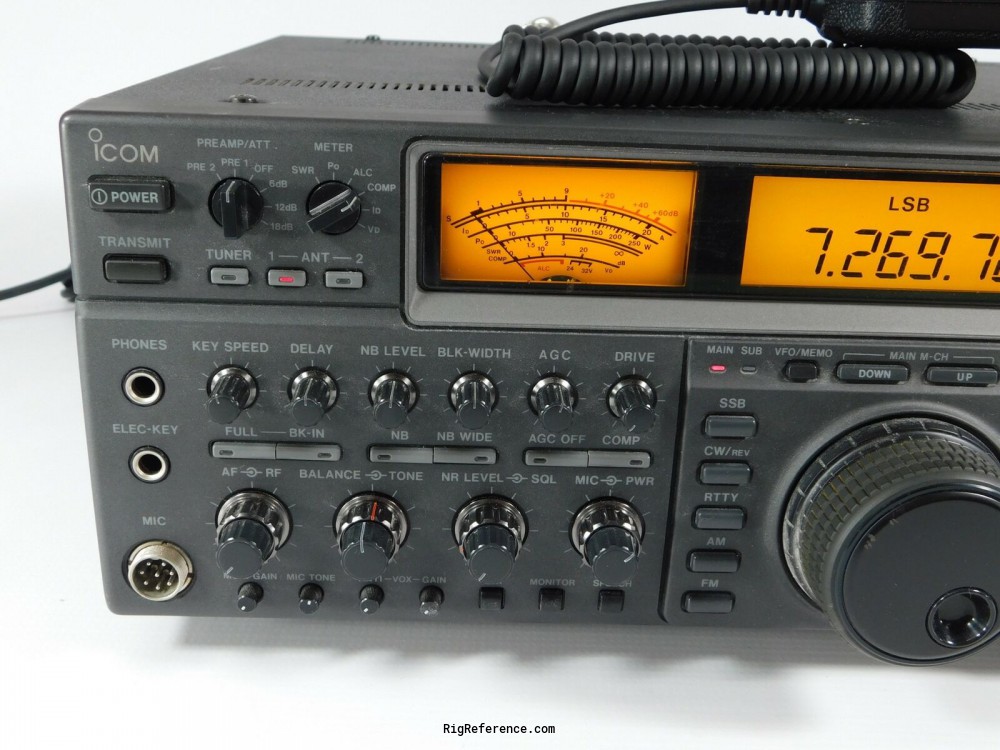

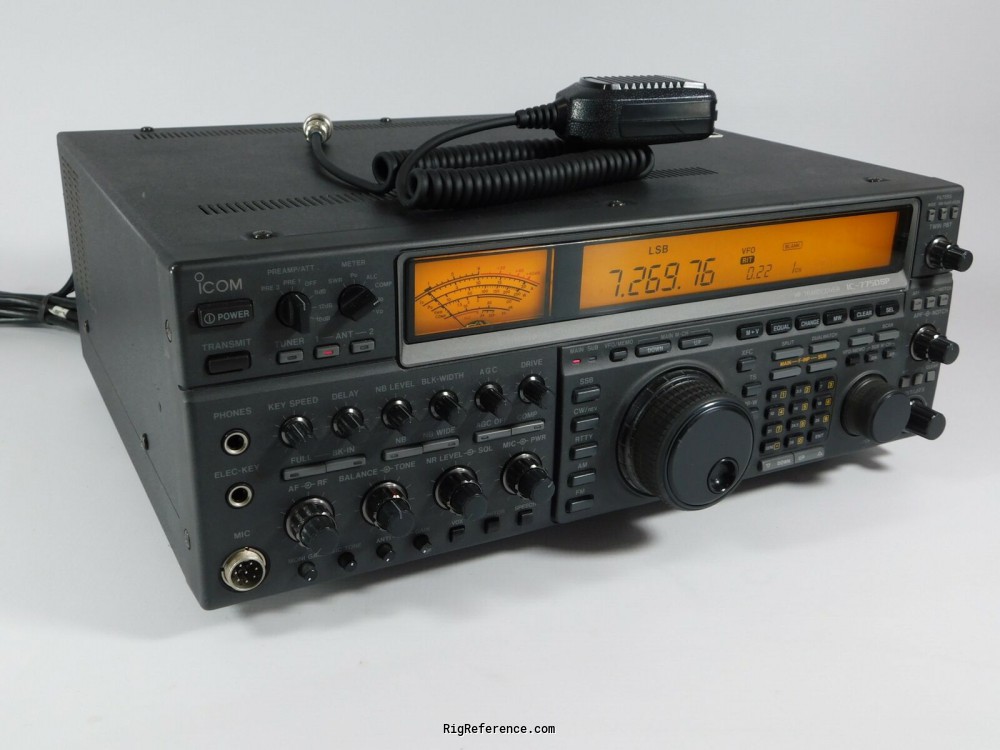

The Icom IC-775DSP lets you pull out weak signals no one else can. Serious DX'ers require serious equipment. While the 775DSP may be fun to operate, it was engineered from the ground up using high-quality components and offering features and performance you will find no where else. Enjoy 200 watts output from power MOS-FET finals with full duty cycle operation. Keypad entry, preamp, IF notch and analog meter are featured. The rear panel has a heat sink and fan and AC cord input
The ICOM IC-775 is the same as the DSP version but without the UI-100 DSP unit installed.
Frequency range
- RX-range
- 0.1-30 MHz
- TX-range
- 10-160 m + WARC
- HAM bands
- ?
- Stability
- ± 30 Hz / hr. at + 25°C after 1 hour warm-up
- Tuning steps
- ?
- Filters
- ?
Receiver
- Modulations
- AM FM CW USB LSB RTTY
- Sensitivity
- SSB, CW, RTTY (10 dB S/N):
100 - 500 kHz, less than 2.0 µV
1.8 - 29.9 MHz, less than 0.16 µV
AM (10 dB S/N):
0.5 - 1.8 MHz, less than 13.0 µV
1.8-29.99 MHz, less than 2.0 µV
FM (12 dB SINAD):
28-29.99 MHz, less than 0.5 µV - Selectivity
- SSB: More than 2 4 kHz/- 6 dB
Less than 4 0 kHz/ -60 dB
CW, RTTY: More than 500 Hz/-6 dB
Less than 1 0 kHz/-60 dB
AM: More than 2 4 kHz/-6 dB
Less than 4 0 kHz/-60 dB
FM: More than 15.0 kHz/-6 dB
Less than 30.0 kHz/-60 dB - Receiver system
- Triple / Quadruple conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ≥ 2.6 W at 10% distortion with an 8-ohm load
Transmitter
- Modulations
- AM FM CW USB LSB RTTY
- RF-Output
- 5-200 W (AM: 5-50 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
Electrical
- Power requirements
- Mains (120 or 230 V AC)
- Current drain RX
- 150 VA max
- TX
- 760 VA max
Physical
- Dimensions (w×h×d)
- 424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)
- Weight
- 16.70 kg (36.8 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1995 and 2002 in Japan
- MPN
- ICOM-IC-000775DSP
Other features
- Memories
- 101 channels in 1 bank(s)
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in keyer
Automatic antenna tuner (AT)
DSP
Twin RX - Accessories
- ?
Manuals, diagrams and brochures
- No documents available for this particular model.
- Upload relevant documents
- Show other documents.
-
Find the ICOM IC-775DSP user manuals on eBay
Reviews & stories
very good transceiver
ICOM IC-775DSP, Desktop Shortwave Transceiver
this was when new a flagship radio by ICOM ,it is easy to use, all features are on the front panel, and the 200w output is a very comfortable and I have not used an amplifier for most of the time I have owned this radio, the price has put this radio in reach of a lot of amateurs.
- Overall
- Performance
- Build quality
- Features
- User friendlyness
- Value for money
- Aquired
-
Good condition in 2004
AUD 0.00
What's it worth
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-775DSP. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's value of the ICOM IC-775DSP might be around:
- EUR 438.00
