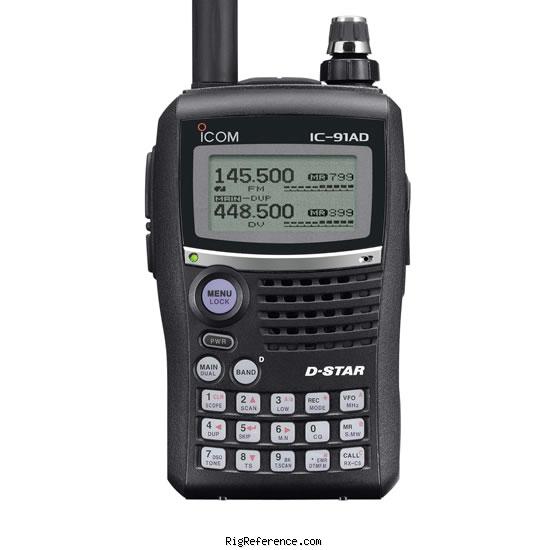

D-Star concept.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 kHz
Memories
1304 channels in 1 bank(s)

Receiver

RX-range
0.5-999 MHz
Modulations
AM   FM   N-FM   W-FM   DV
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
AM/FM: Double-conversion, W-FM: Triple-conversion superheterodyne
IF-frequencies
1st: 61.65 MHz (AM/FM A-band), 59.25 MHz (WFM A-band), 46.35 MHz (AM/FM B-band)
2nd: 450 KHz (AM/FM), 13.35 MHz (WFM)
3rd: 1.95 MHz (WFM)
Image rejection
?
Audio output
?

Transmitter

TX-range
144-148 / 420-440 MHz (USA)
Modulations
FM   N-FM   DV
RF-output
High: 5 / 5 W, Low: 500 / 500 mW

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
7.4V DC (battery pack) 10-16V DC (external)
Current drain RX
?
TX
0.8-2.1 A

Physical

Dimensions (w×h×d)
58 × 103 × 24 mm (2.28 × 4.06 × 0.94 in)
Weight
300 gr (10.6 oz) without batteries and antenna
Form factor
Handheld
Manufactured
Between 2006 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
Alpha tags. CTCSS and DTCS. Twin RX
Accessories
-
RigReference ID
3182
MPN
ICOM-IC-000091AD

Manuals, diagrams and brochures

ICOM IC-91A/AD Instruction Manual.pdf PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-91AD. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-91AD is around:

  • USD 119.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 299.95 New / Good universal-radio
