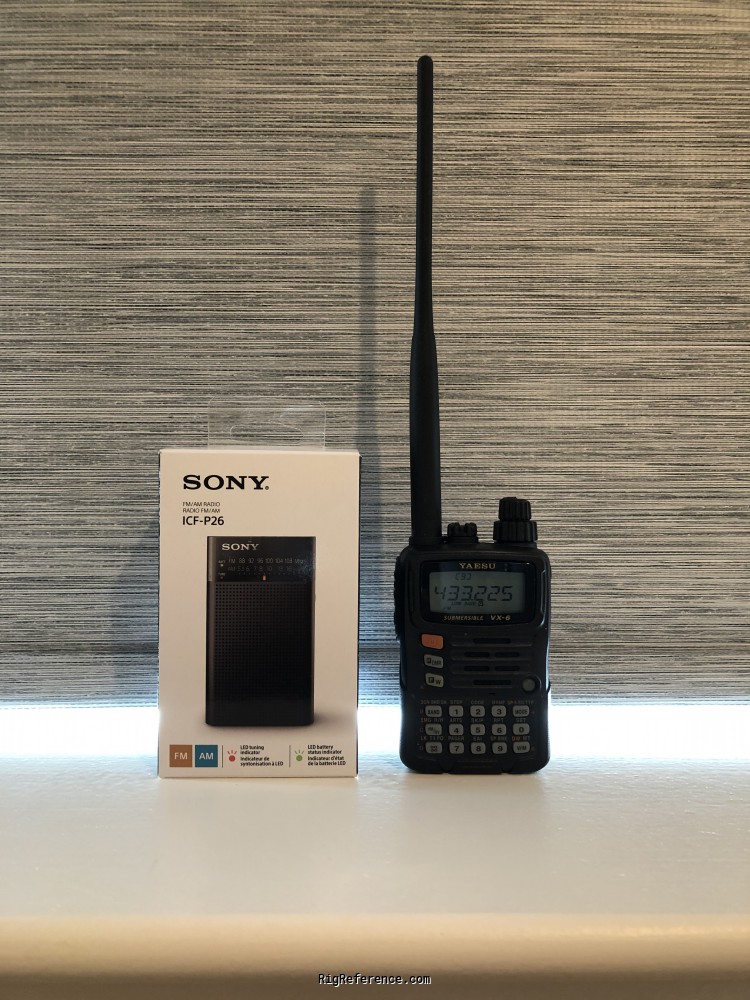

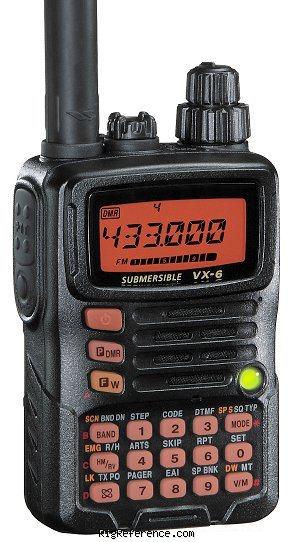

The Yaesu VX-6R is a handheld VHF/UHF transceiver. It covers 144-146 / 430-440 MHz (Europe) or 144-148 / 222-225 / 430-450 MHz (USA). The radio features a maximum RF output of 5W on 2m and 70cm bands. It has 1 memory bank with 1000 channels. Current drain is 20-150 mA in receive mode and a maximum of 1.8A in transmit mode. Dimensions are 89 × 58 × 29 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
- Memories
- 1000 channels in 1 bank(s)
Receiver
- RX-range
- 0.504-999 MHz (Cellular blocked in the US)
- Modulations
- AM FM W-FM
- Sensitivity
- 0.5-30 MHz, AM: 3 µV (10 dB S/N)
VHF low, N-FM: 1 µV (12 dB SINAD)
140-150 MHz, FM: 0.16 µV (12 dB SINAD)
400-470 MHz, FM: 0.18 µV (12 dB SINAD) - Selectivity
- AM/N-FM: 12 kHz (-6 dB), 35 kHz (-60 dB)
W-FM: 200 kHz (-6 dB), 300 kHz (-20 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 222-225 / 430-450 MHz (USA) - Modulations
- FM
- RF-output
- 2m/70cm High: 5/5 W, Low3: 2.5/2.5 W, Low2: 1/1 W, Low1: 0.3/0.3 W, 220 MHz High: 1.5 W, Low3: 1 W, Low2: 0.5 W, Low1: 0.2 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.4V DC (nominal), 5-16V DC (external)
- Current drain RX
- 20-150 mA
- TX
- Max 1.8 A
Physical
- Dimensions (w×h×d)
- 58 × 89 × 29 mm (2.28 × 3.50 × 1.14 in)
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 2005 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha-tags. CTCSS/DCS, DTMF, ARTS. Built-in temperature sensor and optional barometric pressure sensor (SU-1). WIRES-compatible. CW training feature. Password protection. Waterproof/submersible
- Accessories
- -
- RigReference ID
- 4399
- MPN
- YAESU-VX-000006R
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu VX-6R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu VX-6R in Good condition is around:
- EUR 127 ~ EUR 229
- USD 188 ~ USD 250
These estimates are based on the following prices:
