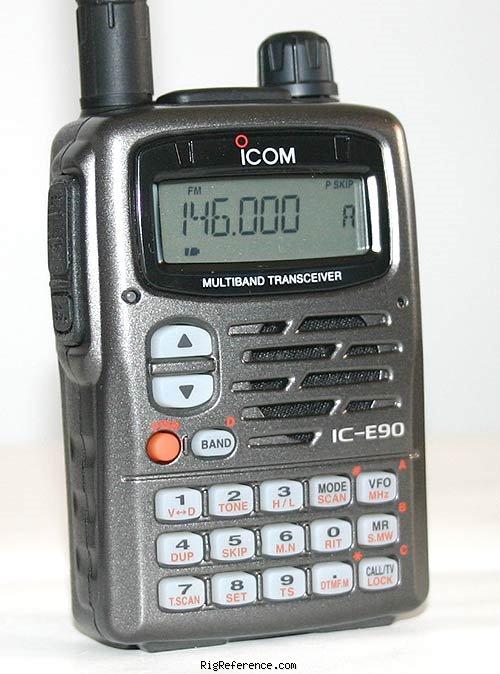

The ICOM IC-E90 is a handheld VHF/UHF transceiver. It covers 50-54 / 144-146 / 430-440 MHz and features DTMF and CTCSS, RIT +/- 5 KHz, 10 dB attenuator, tunable frequency announcement in morse code, PC programmability, and alpha tags. The radio has 18 memory banks with a total of 555 memory channels. It requires 5.5-11.5V DC and weighs 240 gr with BP-217 and antenna. Current drain is 65-220 mA in receive mode and Max 2 A in transmit mode. Dimensions are 87 × 58 × 29 mm.
General characteristics
- HAM bands
- 6m 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 555 channels in 18 bank(s)
Receiver
- RX-range
- 0.495-999.990 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 50-54 / 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 5/5/5 W, Low: 0.5/0.5/0.5 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 5.5-11.5V DC
- Current drain RX
- 65-220 mA
- TX
- Max 2 A
Physical
- Dimensions (w×h×d)
- 58 × 87 × 29 mm (2.28 × 3.43 × 1.14 in)
- Weight
- 240 gr (8.5 oz) with BP-217 and antenna
- Form factor
- Handheld
- Manufactured
- Between 2002 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DTMF and CTCSS. RIT +/- 5 KHz. 10 dB attenuator. Tuned frequency can be announced in morse code! PC-programmable. Alpha tags.
- Accessories
- -
- RigReference ID
- 3194
- MPN
- ICOM-IC-E000090
Manuals, diagrams and brochures
- IC E90 Instr. Manual PDF - 2.96 MB, submitted by Rolf
- IC E90 Service PDF - 2.32 MB, submitted by Rolf
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-E90. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-E90 in Good condition is around:
- EUR 219
These estimates are based on the following prices:
