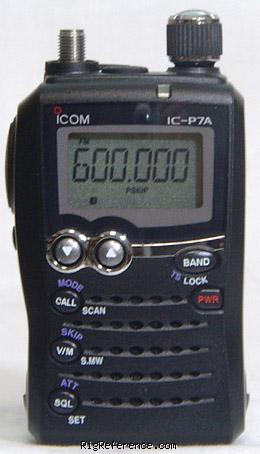

The ICOM IC-P7A is a VHF/UHF transceiver. It covers TX/RX: 144-148 / 440-450 MHz and RX: 0.495-999.990 MHz. Tuning steps are selectable from 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 kHz. Image rejection is >40 dB. RF output is High: 1.5 / 1 W, Low 1: 0.1 / 0.1 W. It features 18 memory banks and 1250 memory channels. The IC-P7A has alpha tags and CTCSS/DTCS. Dimensions are 81 × 47 × 28 mm. It weighs 160 gr with battery and antenna. Current drain is 80-150 mA in receive and Max 1.5 A in transmit.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 kHz
- Memories
- 1250 channels in 18 bank(s)
Receiver
- RX-range
- TX/RX: 144-148 / 440-450 MHz
RX: 0.495-999.990 MHz - Modulations
- AM FM W-FM
- Sensitivity
- AM (10 dB S/N)
0.495-5 MHz: 2.2 µV
5-30 MHz: 1.4 µV
118-137 MHz: 1.4 µV
FM (12 dB SINAD)
30-90 MHz: 0.45 µV
90-144 MHz: 0.2 µV
144-148 MHz: 0.18 µV
148-180 MHz: 0.2 µV
350-470 MHz: 0.18 µV
600-940 MHz: 1.4 µV
940-999.990 MHz: 2.5 µV
W-FM (12 dB SINAD)
76-108 MHz: 1.8 µV µV
600-800 MHz: 2.5 µV - Selectivity
- (Ham bands)
AM/FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
W-FM: 150 kHz (-10 dB), 700 kHz (-20 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >40 dB
- Audio output
- ?
Transmitter
- TX-range
- TX/RX: 144-148 / 440-450 MHz
RX: 0.495-999.990 MHz - Modulations
- FM
- RF-output
- High: 1.5 / 1 W, Low 1: 0.1 / 0.1 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 3.7V DC (Lithium-Ion battery pack, 1800 mAh)
- Current drain RX
- 80-150 mA
- TX
- Max 1.5 A
Physical
- Dimensions (w×h×d)
- 47 × 81 × 28 mm (1.85 × 3.19 × 1.10 in)
- Weight
- 160 gr (5.6 oz) with battery and antenna
- Form factor
- Unknown
- Manufactured
- Between 2005 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags. CTCSS/DTCS
- Accessories
- -
- RigReference ID
- 3203
- MPN
- ICOM-IC-P000007A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-P7A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-P7A in Good condition is around:
- USD 220
These estimates are based on the following prices:
