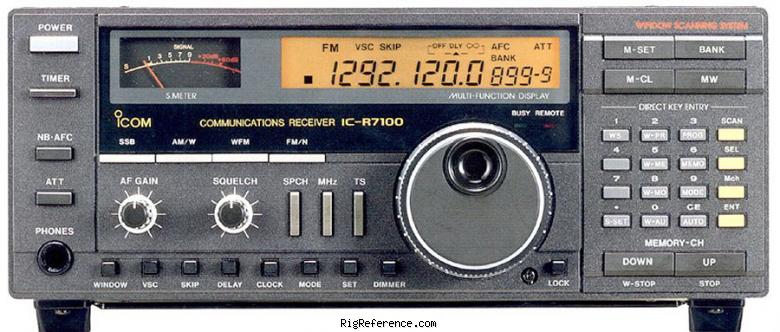

The Icom IC-R7100-12 VHF-UHF receiver covers from 25 to 800 and 900 to 2000 MHz in the following modes: AM, AM-W, FM, FM-W, FM-N, USB and LSB. Nine tuning steps are featured: 0.1, 1, 5, 10, 12.5, 25, 100 and 1000 kHz. The R7100-12 has a 9 bank, 900 channel memory. Scan types available: programmed, memory, selected mode memory, selected number memory, auto memory write, window scan and dual scan. A multi-functional five event, clock-timer provides convenience. The analog S-Meter will help you precisely tune stations. Other useful features include: VSC, NB, AFC, keypad entry, illuminated LCD display to 100 Hz., dimmer, attenuator, squelch, dial lock and ¼ inch headphone jack. The rear panel has jacks for external speaker, line output, recorder activation, remote, IF Output, AGC and N-type antenna input. 120/240 V AC.
The IC-R7100-2 GOVT model is the same as the R7100-12, but without the 800-900 MHz gap. The IC-R7100-12 GOVT can be purchased via government or qualifying commercial purchase order or for export only.
General characteristics
- HAM bands
- 6m 2m 1.25m 70cm 33cm 23cm 10m 4m
- Frequency stability
- ± 5 p.p.m. (below 1025 MHz)
- Tuning steps
- 0.1 / 1 / 5 / 10 / 12.5 / 25 / 100 / 1000 kHz
- Memories
- 900 channels in 9 bank(s)
Receiver
- RX-range
- 25-800 / 900-2000 MHz
- Modulations
- AM W-AM FM N-FM W-FM USB LSB
- Sensitivity
- AM: 1.6 µV (10 dB S/N)
FM: 0.35 µV (12 dB SINAD)
W-FM: 1 µV (12 dB SINAD)
SSB: 0.2 µV (10 dB S/N) - Selectivity
- AM/FM-N: 6 kHz (-6 dB)
FM/AM-W: 15 kHz (-6 dB)
W-FM: 150 kHz (-6 dB)
SSB: 2.4 kHz (-6 dB) - Filters
- ?
- Receiver system
- AM/FM/SSB: Triple-conversion, W-FM: Double-conversion superheterodyne
- IF-frequencies
- 25-512 MHz
1st: 778.7 MHz
2nd: 10.7 MHz
3rd: 455 KHz (AM/FM/SSB)
512-1025 MHz
1st: 266.7 MHz
2nd: 10.7 MHz
3rd: 455 KHz (AM/FM/SSB)
(Crystal converter system above 1025 MHz) - Image rejection
- >50 dB
- Audio output
- 2.0 Watts 4 - 8 Ohms
Connections
- Antenna
- N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- 1.5-1.9 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)
- Weight
- 6.00 kg (13.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1991 and 1998 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- TV option, CI-V
- Accessories
- -
- RigReference ID
- 3222
- MPN
- ICOM-IC-R007100
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R7100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-R7100 in Good condition is around:
- EUR 346 ~ EUR 452
- USD 444 ~ USD 626
- GBP 255 ~ GBP 287
- CAD 539
