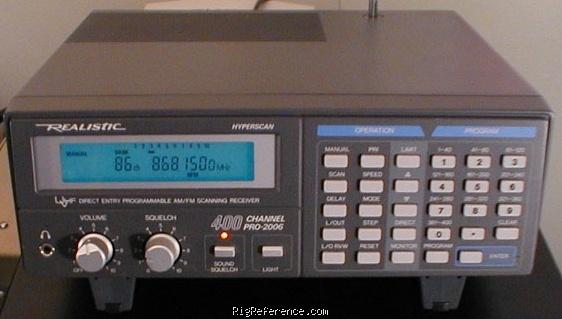

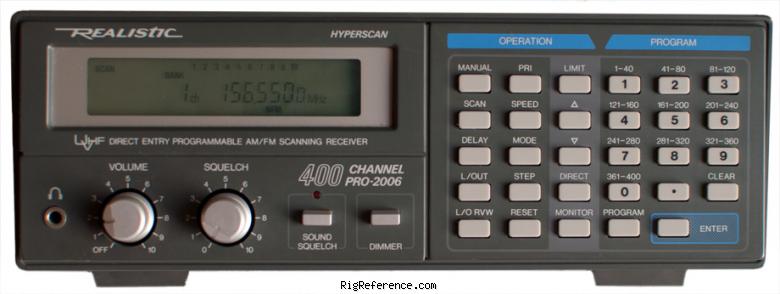

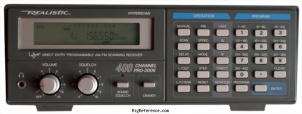

RadioShack / Realistic Pro-2006

Desktop HF/VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
5 / 12.5 / 50 kHz
Memories
400 channels in 1 bank(s) @ 26 channels/second

Receiver

RX-range
25-520 / 760-1300 MHz
Modulations
AM   FM   W-FM
Sensitivity
AM (20 dB S/N)
25-1000 MHz: 2 µV
1000-1300 MHz: 5 µV
FM (20 dB S/N)
25-1000 MHz: 0.5 µV
1000-1300 MHz: 3 µV
W-FM (30 dB S/N)
25-1000 MHz: 3 µV
1000-1300 MHz: 10 µV
Selectivity
AM/FM: 18 kHz (-6 dB), 30 kHz (-50 dB)
W-FM: 300 kHz (-6 dB), 600 kHz (-60 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
BNC
Impedance
50/75 Ω
Other
-

Electrical

Power requirements
12V DC or mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
220 × 76 × 205 mm (8.66 × 2.99 × 8.07 in)
Weight
2.20 kg (4.9 lbs)
Form factor
Base Station
Manufactured
Between 199x and 199x in Japan (By GRE)

Other features

Usage
Amateur / Ham radio operators
Features + options
Sound squelch.
Accessories
-
RigReference ID
3848
MPN
RADIOSHACK-/-REALISTIC-PRO-002006

Manuals, diagrams and brochures

Realistic Pro-2006 Instruction manual (Dutch) PDF - Unknown size, submitted by RigReference

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic Pro-2006. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the RadioShack / Realistic Pro-2006 is around:

  • EUR 3.00 ~ EUR 2.00
  • USD 8.00 ~ USD 4.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2012 USD 100.00 Used / Good KW9JGH
2007 EUR 15.00 Used / Good elmer
2006 EUR 15.00 Used / Good n25
2006 USD 50.00 Used / Good R1VINCE
2006 USD 25.00 Used / Good R1VINCE
