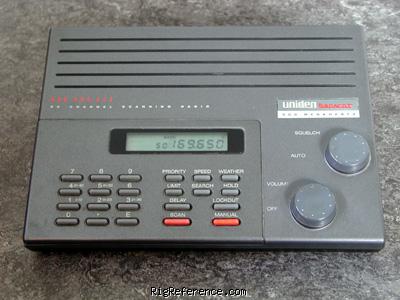

The Uniden Bearcat BC-855XLT is a 50 (5 x 10) channel base scanner that covers VHF Low Band, Aircraft, VHF High Band, UHF and the 800 MHz public service band. The Priority channel is checked every two seconds. Channel Lockout allows you to skip channels you don't want to hear. The Weather scan feature gives you instant access to your local NOAA weather station. Programming is easy. Just key in the desired frequency. Scanning is at 5 or 15 channels per second. The LCD display is backlit.
General characteristics
- HAM bands
- 6m 2m 70cm 33cm
- Frequency stability
- Not specified
- Tuning steps
- 5 / 12.5 kHz
- Memories
- 50 channels in 10 bank(s) @ 15 channels/second
Receiver
- RX-range
- 29-54 / 108-174 / 410-512 / 806-950 MHz
- Modulations
- AM FM
- Sensitivity
- 29-54 / 137-174 MHz: 0.3 µV
406-512 MHz: 0.3 µV
806-956 MHz: 1.0 µV
108-137 MHz: 0.8 µV - Selectivity
- 15 kHz @ -50 dB
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 350 mW, 8 ohms, 10% THD
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50Ω
- Other
- External speaker
Electrical
- Power requirements
- 12 V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 230 × 57 × 165 mm (9.06 × 2.24 × 6.50 in)
- Weight
- 1.38 kg (3.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1990 and 199x in Philippines
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5126
- MPN
- UNIDEN-BEARCAT-BC000855XLT
Manuals, diagrams and brochures
- Bearcat BC855XLT Operating Guide PDF - 1.01 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC855XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Scanner / receiver equipment, the estimated value of the Uniden-Bearcat BC855XLT is around:
- USD 143 ~ USD 266
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
