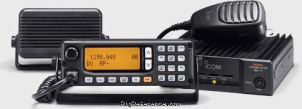

ICOM ID-1

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz

Memories

100 channels in 1 bank(s)

Receiver

RX-range

1240-1300 MHz

Modulations

FM   DV

Sensitivity

FM: 0.18 µV (12 dB SINAD)
4.8 kbps voice: 0.35 µV (BER 1x10-2)
128 kbps data: 1.58 µV (BER 1x10-2)

Selectivity

FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
GMSK 4.8 kbps: 6 kHz (-6 dB)
GMSK 128 kbps: 140 kHz (-6 dB)

Filters

?

Receiver system

? conversion superheterodyne

IF-frequencies

?

Image rejection

50 dB

Audio output

?

Transmitter

TX-range

1240-1300 MHz

Modulations

FM   DV

RF-output

High: 10 W, Low: 1 W

Connections

Antenna

N-type

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC +/-15%

Current drain RX

Max 1.5 A

TX

Max 7 A

Physical

Dimensions (w×h×d)

150 × 50 × 50 mm (5.91 × 1.97 × 1.97 in) Transceiver: 141×40×166 mm

Weight

1.40 kg (3.1 lbs) Panel + Transceiver

Form factor

Mobile

Manufactured

Between 200x and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3273

MPN

ICOM-ID-000001

Manuals, diagrams and brochures

ICOM ID-1 Instruction Manual.pdf PDF - Unknown size, submitted by RigReference

ICOM ID-1 Instruction Manual (addendum-12-04).pdf PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM ID-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM ID-1 in Good condition is around:

• EUR 676 ~ EUR 1,049

Price History Chart

These estimates are based on the following prices:
