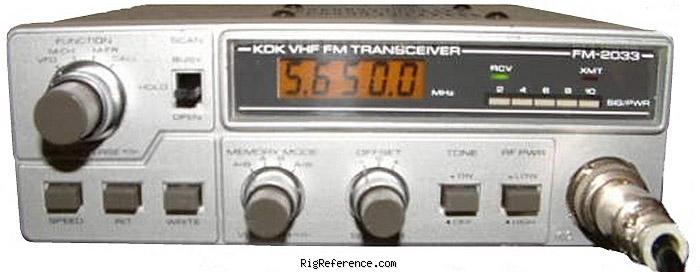

The KDK FM-2033 is a Mobile VHF Transceiver. It covers 142-159 MHz for both receive and transmit. RF output is selectable between High: 25 W and Low: 5 W. The transceiver requires 13.8V DC power and draws 300-800 mA in receive mode and a maximum of 6 A in transmit mode. Dimensions are 55 × 162 × 182 mm and the unit weighs 1.7 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 142-159 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 142-159 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300-800 mA
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 162 × 55 × 182 mm (6.38 × 2.17 × 7.17 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3320
- MPN
- KDK-FM-002033
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used KDK FM-2033. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the KDK FM-2033 in Good condition is around:
- USD 50 ~ USD 175
- EUR 30
These estimates are based on the following prices:
