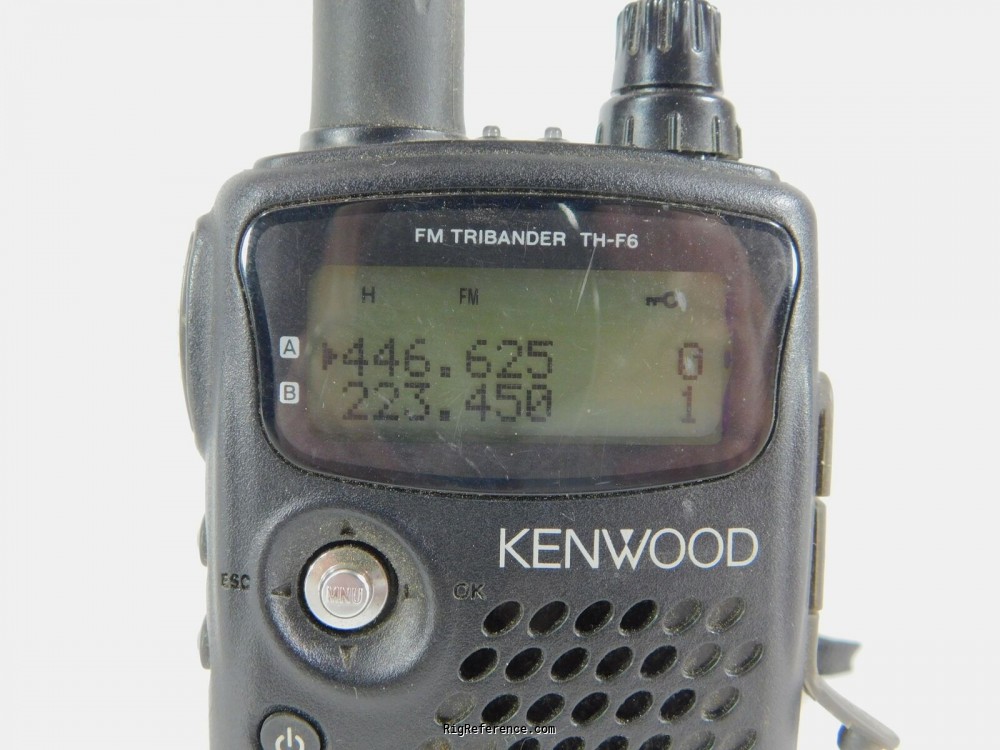

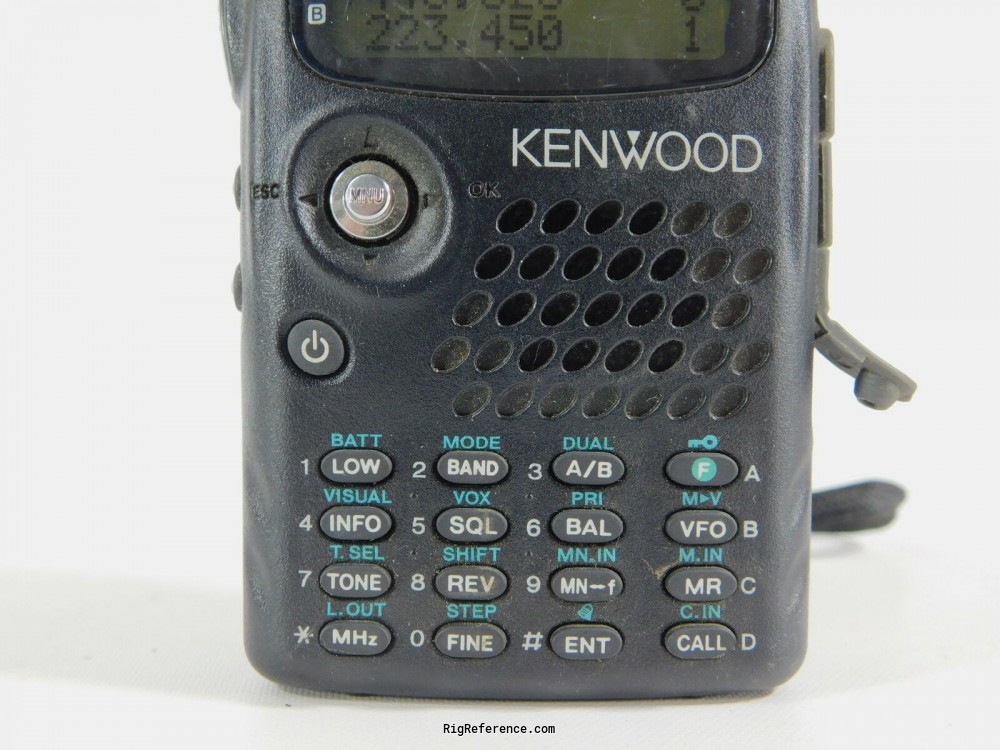

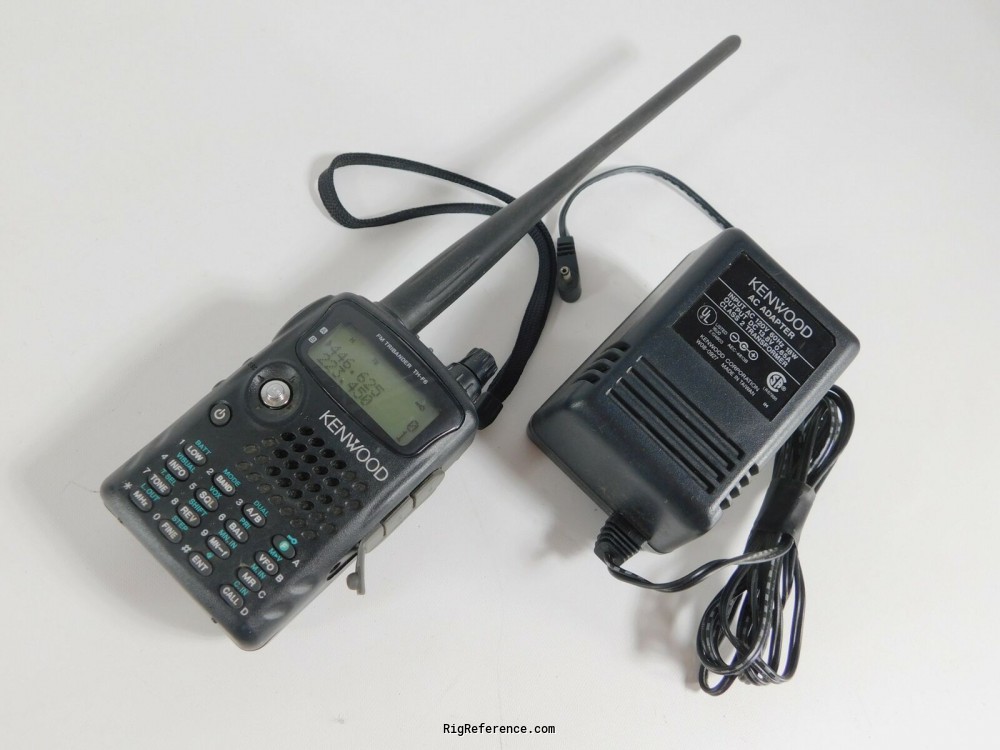

Kenwood TH-F6A

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

?

Memories

435 channels in 1 bank(s)

Receiver

RX-range

0.1-1300 MHz (Cellular blocked)

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 222-225 / 438-450 MHz

Modulations

FM

RF-output

High: 5/5/5 W, Low: 0.5/0.5/0.5 W, El: 50/50/50 mW

Connections

Antenna

SMA

Impedance

50 Ω

Other

-

Electrical

Power requirements

Internal: 5-7.5V DC External: 12-16V DC

Current drain RX

100-170 mA (no signal)

TX

0.5-2 A

Physical

Dimensions (w×h×d)

58 × 87 × 30 mm (2.28 × 3.43 × 1.18 in) with lithium-ion battery pack

Weight

250 gr (8.8 oz) with lithium-ion battery pack

Form factor

Handheld

Manufactured

Between 2001 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

9K6 packet ready. Twin RX

Accessories

-

RigReference ID

3381

MPN

KENWOOD-TH-F000006A

Manuals, diagrams and brochures

Kenwoon TH-F6A/TH-F7E Instruction Manual PDF - 971.1 kB, submitted by DHall



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TH-F6A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Kenwood TH-F6A in Good condition is around:

• USD 226 ~ USD 285

Price History Chart

These estimates are based on the following prices:
