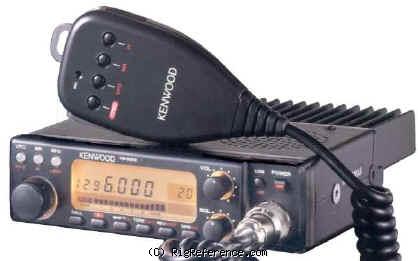

Kenwood TM-531E

Mobile UHF Transceiver

Specs Manuals (2) Reviews (0) Prices (1) Compare

The Kenwood TM-531E is a mobile UHF transceiver. It covers 1240-1300 MHz for both transmit and receive. RF output is selectable between High: 10 W and Low: 1 W. The radio has 1 memory bank with 20 channels. It requires 11-16V DC power. Dimensions are 40 × 140 × 160 mm. Current drain in receive is Max 700 mA, and Max 5.5 A in transmit.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 1240-1300 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 1240-1300 MHz
Modulations: FM
RF-output: High: 10 W, Low: 1 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 11-16V DC
Current drain RX: Max 700 mA
TX: Max 5.5 A

Physical

Dimensions (w×h×d): 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 1990 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3407
MPN: KENWOOD-TM-000531E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Kenwood TM-231 / TM-331 / TM-431 / TM-531 Manual PDF - Unknown size, submitted by RigReference
: TM-531A E SM PDF - 26.64 MB, submitted by Berend

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-531E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Kenwood TM-531E in Good condition is around:

USD 506

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2020	USD 300.00	Used / Okay	Jamie Golly
