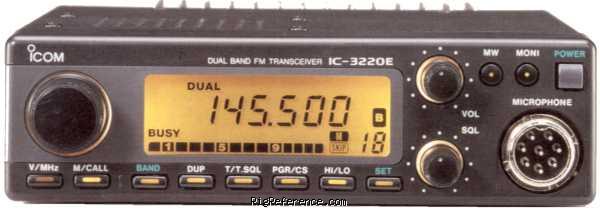

ICOM IC-3220E

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-3220E rigs and spare parts on eBay Find the ICOM IC-3220E on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
144-146 / 430-440 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 25/25 W, Low 2: 10/10 W, Low 1: 1/1 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
0.8-1.2 A
TX
Max 8 A

Physical

Dimensions (w×h×d)
140 × 40 × 195 mm (5.51 × 1.57 × 7.68 in)
Weight
1.40 kg (3.1 lbs)
Form factor
Mobile
Manufactured
Between 1990 and 19xx
MPN
ICOM-IC-003220E

Other features

Memories
36 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
