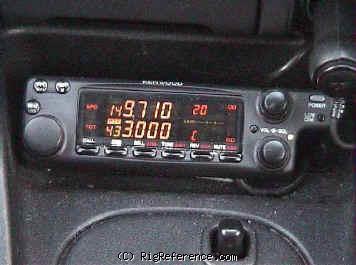

The Kenwood TM-732A is a mobile VHF/UHF transceiver. It covers 118-174 / 410-470 MHz for receive and 144-148 / 430-450 MHz for transmit. The RF output is High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. It features Twin RX. Power requirements are 11-16V DC. Current drain is 3 A while receiving and Max 11 A while transmitting. Dimensions are 40 × 140 × 160 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 118-174 / 410-470 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- 3 A
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1992 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 3417
- MPN
- KENWOOD-TM-000732A
Manuals, diagrams and brochures
- Kenwood TM-732 Block Diagram PDF - Unknown size, submitted by RigReference
- Kenwood TM-732 Instruction Manual PDF - Unknown size, submitted by RigReference
- Kenwood TM-732 Schematic Diagram PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-732A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TM-732A in Good condition is around:
- USD 169
These estimates are based on the following prices:
