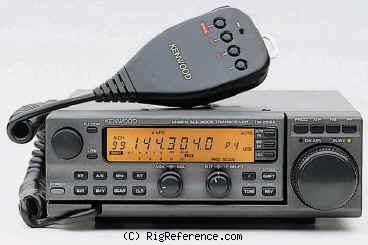

The Kenwood TM-255E is a Mobile VHF Transceiver. It covers 144-146 MHz for both transmit and receive. The RF output power is selectable between High: 40 W and Low: 5 W. It features 1 memory bank with 101 channels, and requires 13.8V DC power. Current drain during transmit is Max 13 A. Dimensions are 60 × 180 × 216 mm. It weighs 2.7 kg. The TM-255E is 9K6 packet ready and has a detachable front panel.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 101 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- RF-output
- High: 40 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 13 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 216 mm (7.09 × 2.36 × 8.50 in)
- Weight
- 2.70 kg (6.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1994 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready. Detachable front panel
- Accessories
- -
- RigReference ID
- 3396
- MPN
- KENWOOD-TM-000255E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-255E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TM-255E in Good condition is around:
- EUR 300
These estimates are based on the following prices:
