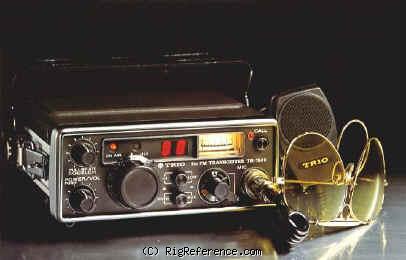

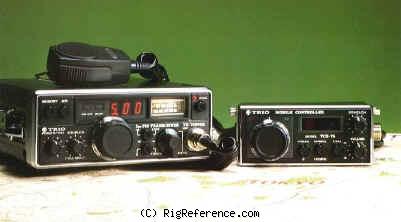

Kenwood TR-7500

VHF Transceiver

Specs Manuals (0) Reviews (1) Prices (1) Compare

The Kenwood TR-7500 is a VHF transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power is selectable between High: 10 W and Low: 1 W. It requires 13.8V DC power and weighs 2.2 kg. Dimensions are 60 × 152 × 234 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 10 W, Low: 1 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 152 × 60 × 234 mm (5.98 × 2.36 × 9.21 in)
Weight: 2.20 kg (4.9 lbs)
Form factor: Unknown
Manufactured: Between 1977 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3457
MPN: KENWOOD-TR-007500

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Rating	Title	Submitted
	Kenwood TR-7500 (easy mobile)	13 years ago by g4led

View all Kenwood TR-7500 reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-7500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Kenwood TR-7500 in Good condition is around:

GBP 169

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
1975	GBP 225.00	New / Mint	g4led
