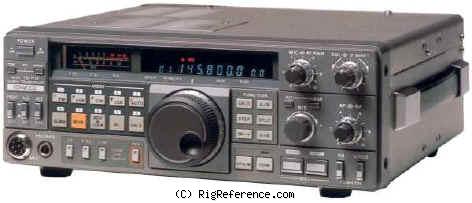

The Kenwood TS-711E is a desktop VHF transceiver. It covers 144-146 MHz for both transmit and receive. The RF output power is selectable between 2-25 W. It features 1 memory bank with 40 channels and DCS. The radio weighs 7.1 kg and requires 12-16V DC or mains power. Dimensions are 96 × 270 × 260 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- RF-output
- 2-25 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12-16V DC or mains
- Current drain RX
- Max 1.3 A
- TX
- Max 6.5 A
Physical
- Dimensions (w×h×d)
- 270 × 96 × 260 mm (10.63 × 3.78 × 10.24 in)
- Weight
- 7.10 kg (15.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1984 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DCS
- Accessories
- -
- RigReference ID
- 3504
- MPN
- KENWOOD-TS-000711E
Manuals, diagrams and brochures
- Kenwood TS-711 & TS-811 Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-711 User Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Great first 2M SSB rig! | 9 years ago by rreh917 | |
| What a lovely radio | 12 years ago by stevie.quinn | |
| Strong oldie | 14 years ago by OZ5ES |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-711E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-711E in Good condition is around:
- USD 513 ~ USD 705
- EUR 175 ~ EUR 290
These estimates are based on the following prices:
