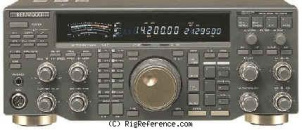

Kenwood TS-870S

Desktop Shortwave Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Find Kenwood TS-870S rigs and spare parts on eBay Find the Kenwood TS-870S on Amazon
We receive a small fee when you buy through these links, thank you!

Digital signal processing (DSP) at the IF stage is now a reality with the Kenwood TS-870S HF transceiver. DSP technology uses a dedicated computer chip to convert analog waveforms into digital information in real-time, providing the opportunity to filter and enhance the quality of the signal before it is reconverted into analog form for the human ear. This design uses two state-of-the-art 24-bit 20 MIPS DSP chips that provide for receiving enhancements to bring signals out of the noise. Imagine over 100dB out of pass band attenuation with virtually no signal loss by the DSP filter! Imagine CW bandwidth adjustable to 50 Hz. Advanced speech processing with transmit equalization that will make you the first in pile-ups! This radio also features RIT and XIT and a multifunction meter. Plus complete computer operation and control of the TS-870S is possible with supplied Windows™ software and a built-in RS-232C port [DB9].

Frequency range

RX-range
0.1-30 MHz
TX-range
10-160 m + WARC
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Stability
≤ 10 p.p.m.
Tuning steps
Continuous
Filters
SSB: 300 / 2600 Hz CW: 200 Hz FSK: 500 Hz AM: 100 / 4000 Hz FM: 14 kHz

Receiver

Modulations
AM   FM   CW   USB   LSB   FSK
Sensitivity
SSB / CW / FSK
100-500 kHz: ≤ 1 µV
0.5-1.62 MHz: ≤ 4 µV
1.62-24.5 MHz: ≤ 0.2 µV
24.5-30 MHz: ≤ 0.13 µV
AM
100-500 kHz: ≤ 2 µV
0.5-1.62 MHz: ≤ 31.6 µV
1.62-24.5 MHz: ≤ 2 µV
24.5-30 MHz: ≤ 2 µV
FM
28-30 MHz: ≤ 0.25 µV
Selectivity
SSB: 2.3 kHz @ -6 dB / 3.3 kHz @ -60 dB
CW: 200 Hz @ -6 dB / 450 Hz @ -60 dB
FSK: 500 Hz @ -6 dB / 1000 Hz @ -60 dB
AM: 9 kHz @ -6 dB / 12 kHz @ -60 dB
FM: 14 kHz @ -6 dB / 18 kHz @ -60 dB
Receiver system
Quadruple conversion superheterodyne
IF-frequencies
1st: 73.05 MHz
2nd: 8.83 MHz
3rd: 455 kHz
4th: 11.3 kHz
Image rejection
≥ 80 dB
Audio output
>= 1.5 W @ 1-% THD into 8 Ohms

Transmitter

Modulations
AM   FM   CW   USB   LSB   FSK
RF-Output
Max 100 W (AM 25 W)

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
2 A
TX
20.5 A

Physical

Dimensions (w×h×d)
330 × 120 × 334 mm (12.99 × 4.72 × 13.15 in)
Weight
11.50 kg (25.4 lbs)
Form factor
Base Station
Manufactured
Between 1995 and 19xx
MPN
KENWOOD-TS-000870S

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
DSP
Built-in auto AT: 20-150 ohms
Accessories
?

Manuals, diagrams and brochures

Kenwood TS-870S In Depth Manual submitted by RigReference
Kenwood TS-870S Service Manual submitted by RigReference
Kenwood TS-870S User Manual submitted by RigReference
Kenwood TS-870S User Manual Dutch submitted by RigReference
Kenwood TS-870 Surge Diodes submitted by Phil Sisson
Kewoon TS-870S EPROM Replacement submitted by Phil Sisson

Upload relevant documents

Show other documents.
Find the Kenwood TS-870S user manuals on eBay #ad

Reviews & stories

My best rig

Kenwood TS-870S, Desktop Shortwave Transceiver

very easy to use and with optimal performances

Written by iz2uqe on Nov 15, 2014

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2012
EUR 700.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Kenwood TS-870S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TS-870S is around:

  • EUR 503.00
Year Historic price Condition Submitted by
2012 EUR 700.00 Used / Good iz2uqe
2012 EUR 700.00 Used / Good iz2uqe
