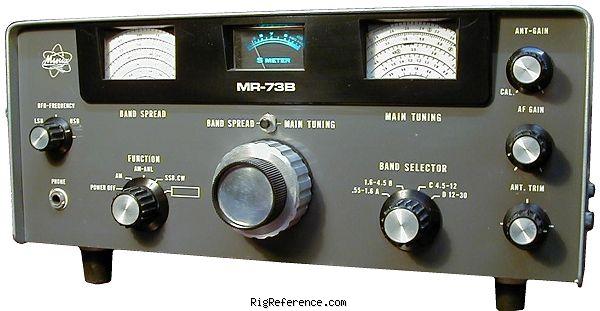

Minix MR-73B

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

0.55-30 MHz in four bands

Modulations

AM   CW   SSB

Sensitivity

AM: 1 µV (10 dB S/N)
SSB: 0.3 µV (10 dB S/N)

Selectivity

4 kHz, shape factor <2

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

Better than 35 dB

Audio output

?

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12V DC or mains

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

360 × 160 × 220 mm (14.17 × 6.30 × 8.66 in)

Weight

6.00 kg (13.2 lbs)

Form factor

Base Station

Manufactured

Between 1976 and 197x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Noise limiter, BFO.

Accessories

-

RigReference ID

3574

MPN

MINIX-MR-000073B

Manuals, diagrams and brochures

No documents available for this particular model.
