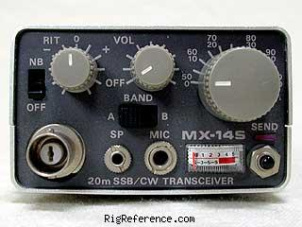

The Mizuho MX-14S is a handheld transceiver. It covers 20m with 50 kHz per XTAL for both receive and transmit. The receiver system utilizes VXO with a maximum of 2 XTALS. RF output is 2 W. Audio output is through an internal speaker. Power requirements are 9.5V DC. Dimensions are 142 × 66 × 39 mm. Current drain is 68 mA in receive and max 600 mA in transmit.
General characteristics
- HAM bands
- 20m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 20m (50 kHz per XTAL)
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- VXO. Max 2 XTALS
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 20m (50 kHz per XTAL)
- Modulations
- CW SSB
- RF-output
- 2 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 9.5V DC
- Current drain RX
- 68 mA
- TX
- Max 600 mA
Physical
- Dimensions (w×h×d)
- 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
- Weight
- 645 gr (1.4 lbs) batteries included
- Form factor
- Handheld
- Manufactured
- Between 1987 and 2002 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3588
- MPN
- MIZUHO-MX-000014S
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Mizuho MX-14S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Mizuho MX-14S in Good condition is around:
- GBP 113
These estimates are based on the following prices:
