Mizuho MX-15

HF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

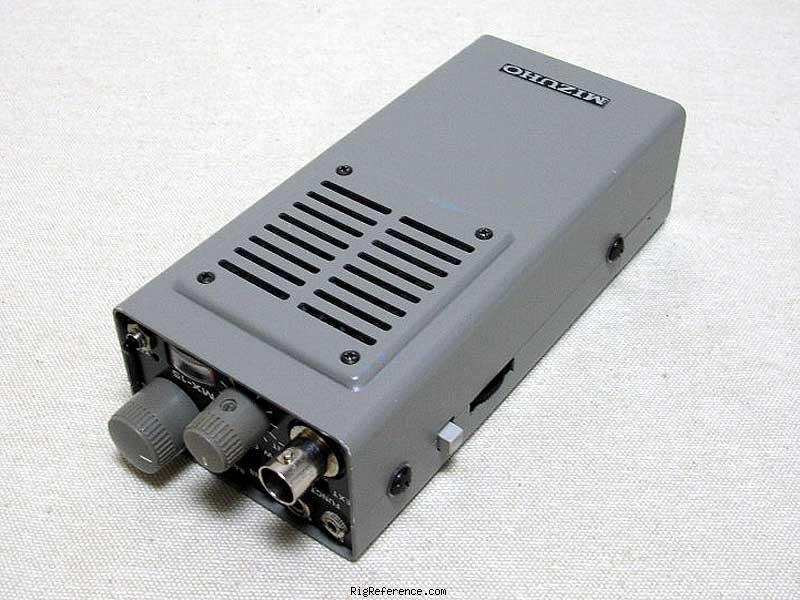

The Mizuho MX-15 is a HF transceiver. It covers 21-21.45 MHz (50 KHz per XTAL) for both receive and transmit. The receiver system utilizes VXO with a maximum of 2 crystals. RF output is 300 mW. Power requirements are 9.5V DC. Dimensions are 142 × 66 × 39 mm. The radio weighs 645 gr including batteries. Current drain in receive mode is 40 mA and max 200 mA in transmit mode.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 21-21.45 MHz (50 KHz per XTAL)
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: VXO. Max 2 XTALS
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 21-21.45 MHz (50 KHz per XTAL)
Modulations: CW SSB
RF-output: 300 mW

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

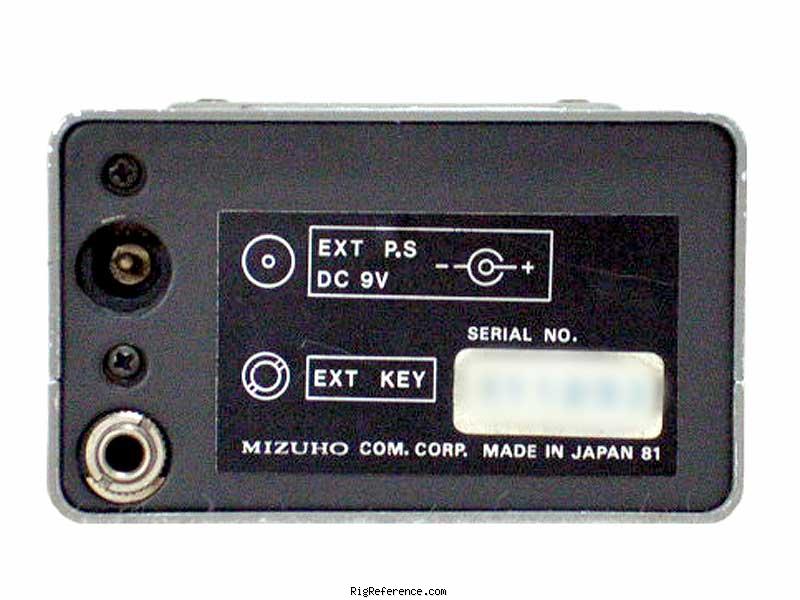

Power requirements: 9.5V DC
Current drain RX: 40 mA
TX: Max 200 mA

Physical

Dimensions (w×h×d): 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
Weight: 645 gr (1.4 lbs) batteries included
Form factor: Unknown
Manufactured: Between 1982 and xxxx in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3589
MPN: MIZUHO-MX-000015
